Pottinger

Smooth-running Pottinger rakes with perfect ground tracking and extreme manoeuvrability meet the high specifications of the industry. The low disintegration loss and minimal contamination from these rakes deliver energy-rich forage and ensure economical use of base forage.

 Download Brochure

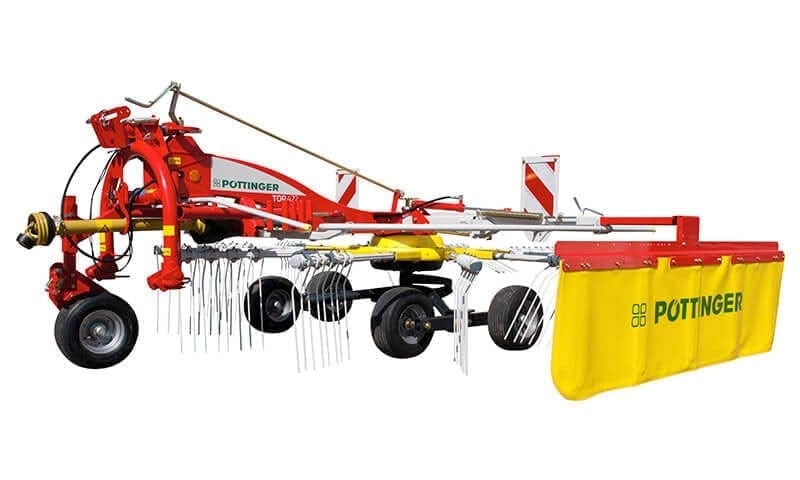

TOP Single Rotor Rakes

  • 3.8m – 4.6m working width
  • Pivoting Headstock for smooth cornering
  • Large Long life Rotor / adjustable cam track / hardened steel cam rollers
  • Huge Cam track and rotor arm support for lower tine and bearing stress
  • Tandem rotor axle bogie wheels 16×6.5-8 (NZ Std Spec)
  • T.O. with Overload protection Clutch
  • Optional: Front jockey wheels for superior contour following
  • Tangential Control of Tine arms, Closed zero maintenance rotor
  • High quality powder coated paint finish

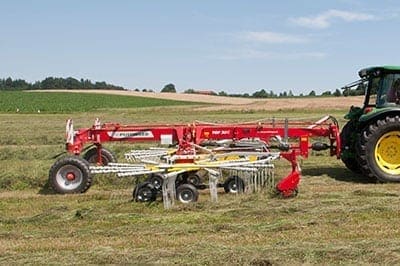

TOP Twin Rotor Centre Swather Rakes

  • 5.9m – 9.6m working width
  • NEW! Duratec rotors – 3 bolt removal of tine arms
  • Flow Divider for parallel Lifting of Rotors
  • Variable Working Widths (612C Fixed) (702C & 762C Hyd Adjustable)
  • Large Long life adjustable cam track / hardened steel cam rollers
  • Huge Cam track and rotor arm support for lower tine and bearing stress
  • NEW! 5 Wheel rotor axle (NZ Std spec)
  • Wide Angle PTO with C.V c/w Overload Clutch
  • Optional: “MULTITAST” front jockey wheels for superior contour following
  • Tangential Control of Tine arms, Closed zero maintenance rotor
  • High quality powder coated paint finish

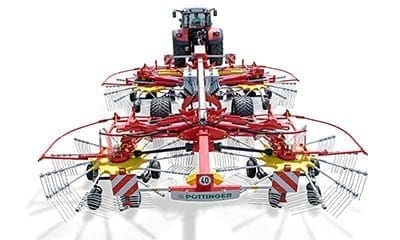

TOP Four Rotor Centre Swather Rakes

  • 8m – 12.5m working width
  • Low 3.99m Transport Height – without removing tine Arms
  • Hydraulic Drive front rotors fold inwards for Low Transport Height
  • New! Easy External in Field Tine Arm replacement – Just with two bolts!
  • Power Control panel for Automatic settings of Sequences (NZ Std Spec)
  • Hydraulic Brakes on Transport wheels
  • Large Floatation Transport Wheels 560/45-R22,5 14PR (NZ Std Spec)
  • Large Rotor and adjustable cam track with hardened steel cam rollers
  • Huge Cam track and rotor arm support for lower tine and bearing stress
  • Tandem rotor axle bogie wheels Swivelling
  • T.O. with Wide angle C.V Joint and Overload protection Clutch
  • “MULTITAST” front jockey wheels for superior ground following
  • Tangential Control of Tine arms, Closed zero maintenance rotor
  • High quality powder coated paint finish
