Alpego
Power harrows are one of the most versatile implements for soil cultivation, thanks to the fact that they can be adapted to suit any type of soil and situation. The possibility of combining them with seed-drills also offers a profitable solution for seed-drill operations.
The levelling bar on Alpego power harrows is directly attached to the rear roller, making it possible to maintain a constant height from the ground, thereby improving the levelling quality and reducing the power absorbed by the power harrow.
Thanks to the PARALLELOGRAM system of depth adjustment, the rear roller constantly maintains the same degree of inclination.

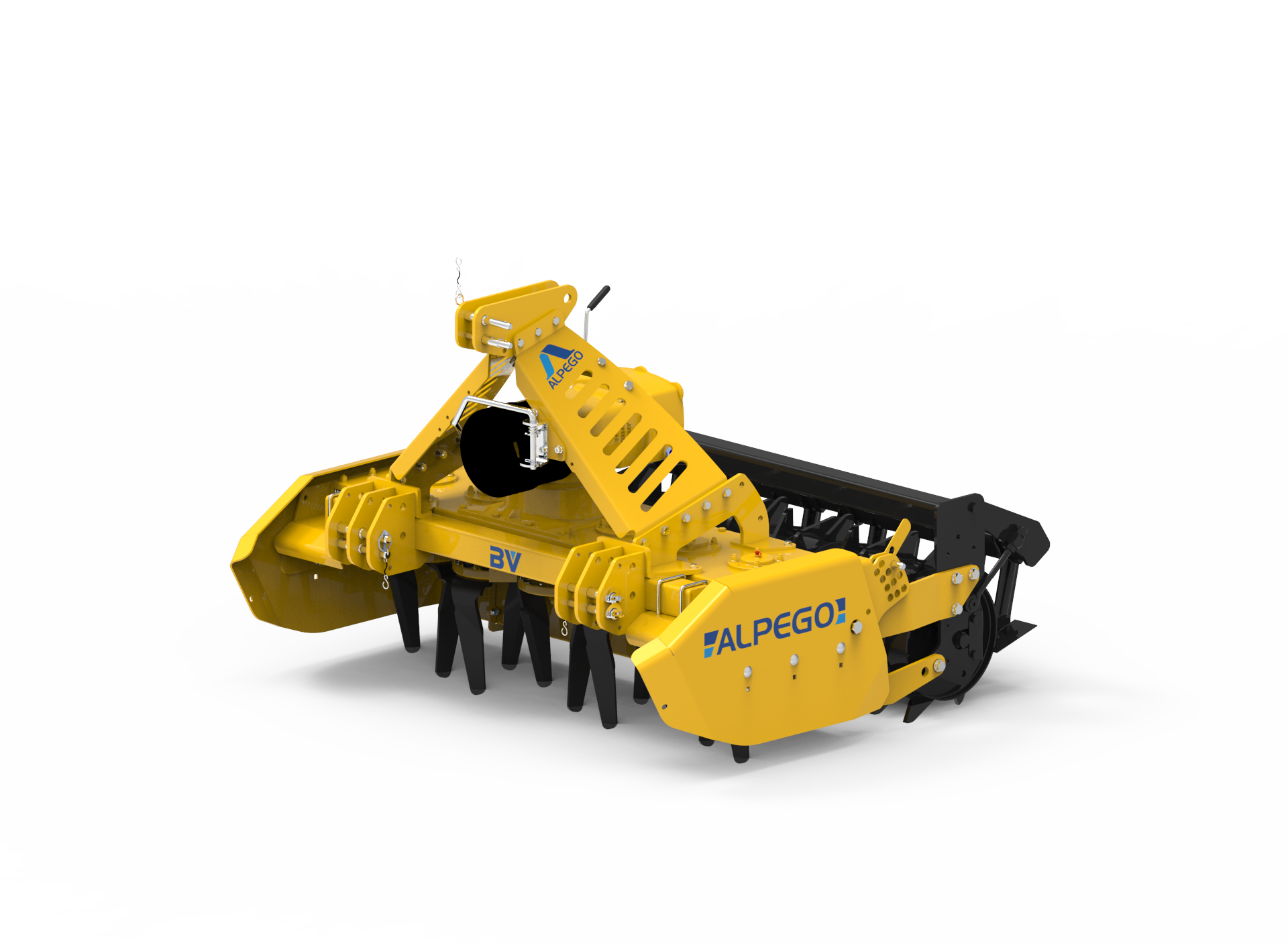

BV Power Harrow
Compact and ideal for use in tight areas such as vineyards, thanks to the design of the side plates, bevelled profiles and compact size.
Alpego power harrows are designed to withstand the toughest conditions, including firm, heavy and stony soils. The high tensile steel frame and high-performing mechanics make it ideal for use with high-power tractors
- Equipped with standard front guards, preventing stones from entering and damaging the rotors
- Side plates are adjustable – ideal for narrow passages, and are height adjustable to 4 positions
- Levelling bar as standard
MODEL | HP | WORKING WIDTH | No. BLADES | No. ROTORS | WORKING DEPTH |
BV 140 | 40 – 120 | 1.361m | 4 rh + 6 lh | 5 | 250mm |
BV 160 | 50 – 140 | 1.5m | 6 rh + 6 lh | 6 | 250mm |
BV 180 | 55 – 140 | 1.8m | 8 rh + 6 lh | 7 | 250mm |
BV 205 | 70 – 140 | 2.0m | 8 rh + 8 lh | 8 | 250mm |

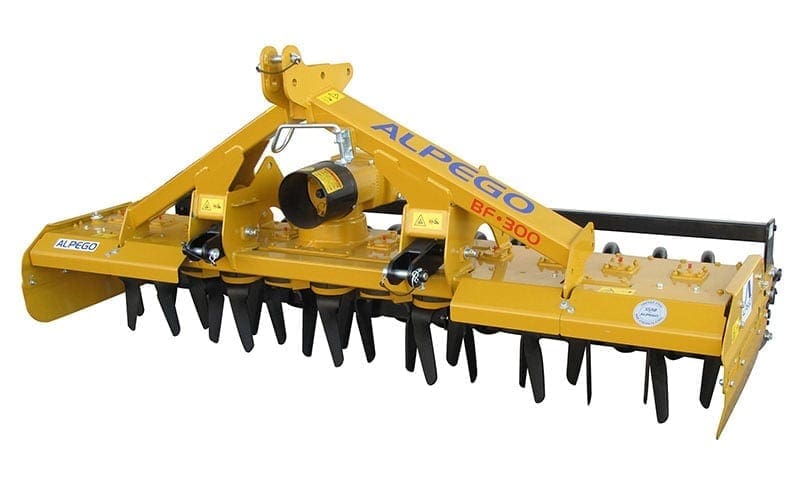

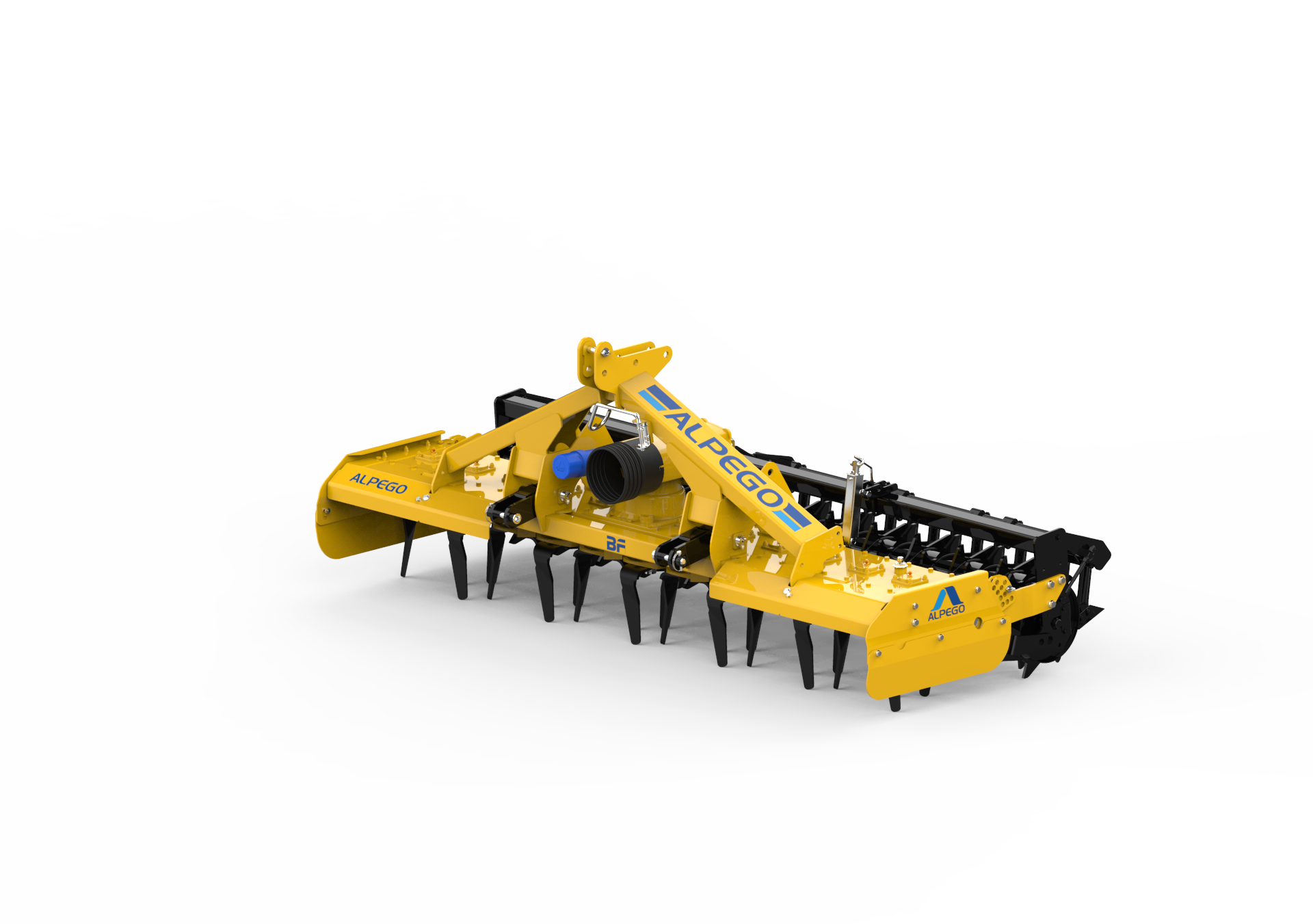

BF Power Harrow
The professional rigid power harrow ROTODENT BF is available in the working widths 2.5 and 3 m. and it is ideal for tractors from 65 to 140 HP.
64-140HP
- Strong Box section chassis Made from Special Swedish Steel
- Round Blade supports – for less drag and lower power
- Rear Leveling Bar with Automatic Level Control and screw adjusters
- Floating lower Link mounting
- Spring Loaded side Shields
- P.T.O Drive shaft with Auto Cut out Cam-Clutch – standard
- Selecta speed Gearbox with pick off gears to change rotor speeds
- Stand Rotor speed 270/340 RPM other speeds/ Gears available on request
- Special 12mm x 300mm angled blades for less power
- Phased Blade timing for lower power and smoother running
- Floating roller mounted on parallelogram with fast depth adjustment
OPTIONS
- 2.5m CAGE Roller
- 3.0m CAGE Roller
- 2.5m Packer Roller
- 2.5m Packer Roller
- ROTOR STONE SHIELDS (20pcs for 2.5m / 24pcs for 3.0m)
MODEL | HP | WORKING WIDTH | P.T.O | No. BLADES | No. ROTORS |
---|---|---|---|---|---|
BF 250 | 64-140 | 2.5m | 540 | 10+10 | 10 |
BF 300 | 75-140 | 3.0m | 540 | 12+12 | 12 |

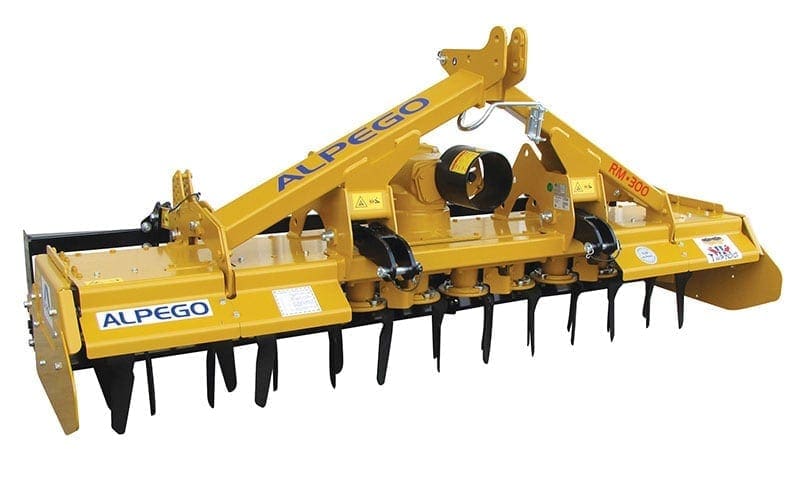

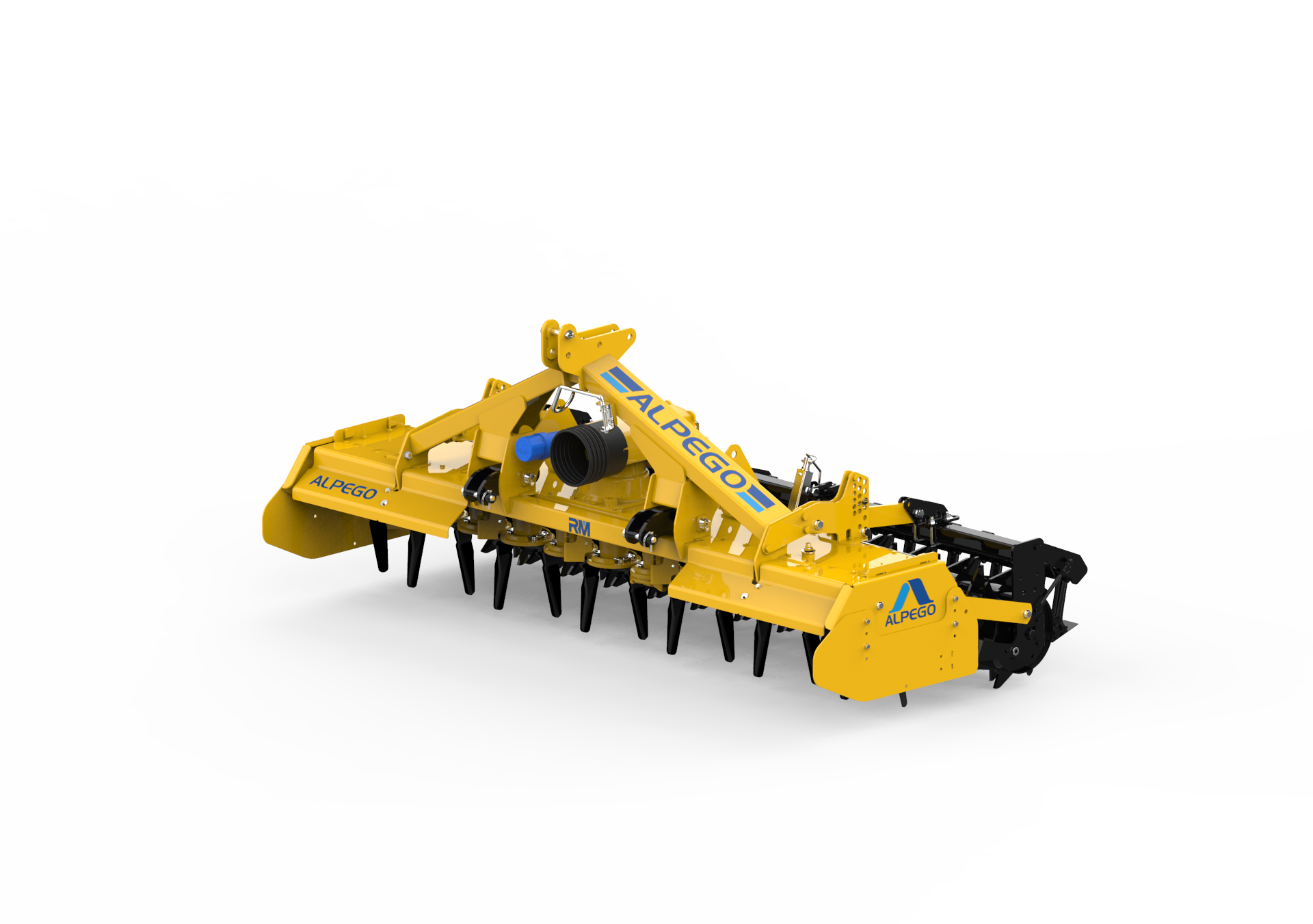

RM Power Harrow
80-150HP
- Strong Box section chassis Made from Special Swedish Steel
- Round Blade supports – for less drag and lower power
- Top and bottom ball bearing rotors for extra rotor shaft support
- Cast steel stone protection collars fitted – standard
- Rear Leveling Bar with Automatic Level Control and screw adjusters
- Floating lower Link mounting
- Spring Loaded side Shields
- P.T.O Drive shaft with Auto Cut out Cam-Clutch – standard
- Selecta speed Gearbox with pick off gears to change rotor speeds
- Stand Rotor speed 343 RPM other speeds/ Gears available on request
- Special angled Blades with sweep back for less power
- Phased Blade timing for lower power and smoother running
- Floating roller mounted on parallelogram with fast depth adjustment
OPTIONS
- 3.0M CAGE ROLLER
- 3.0M PACKER ROLLER
MODEL | WORKING WIDTH | P.T.O | No. BLADES | No. ROTORS |
---|---|---|---|---|
RM 300 | 3.0M | 1000 | 12+12 | 12 |

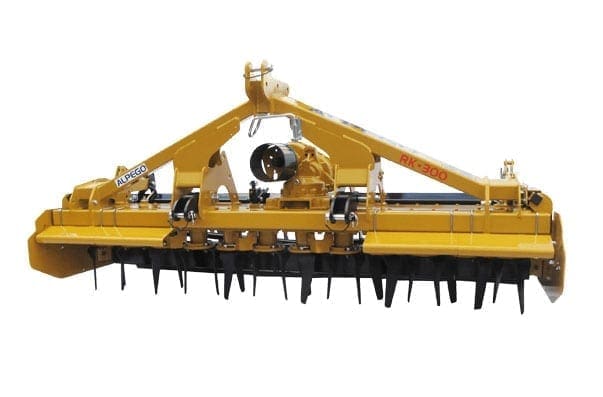

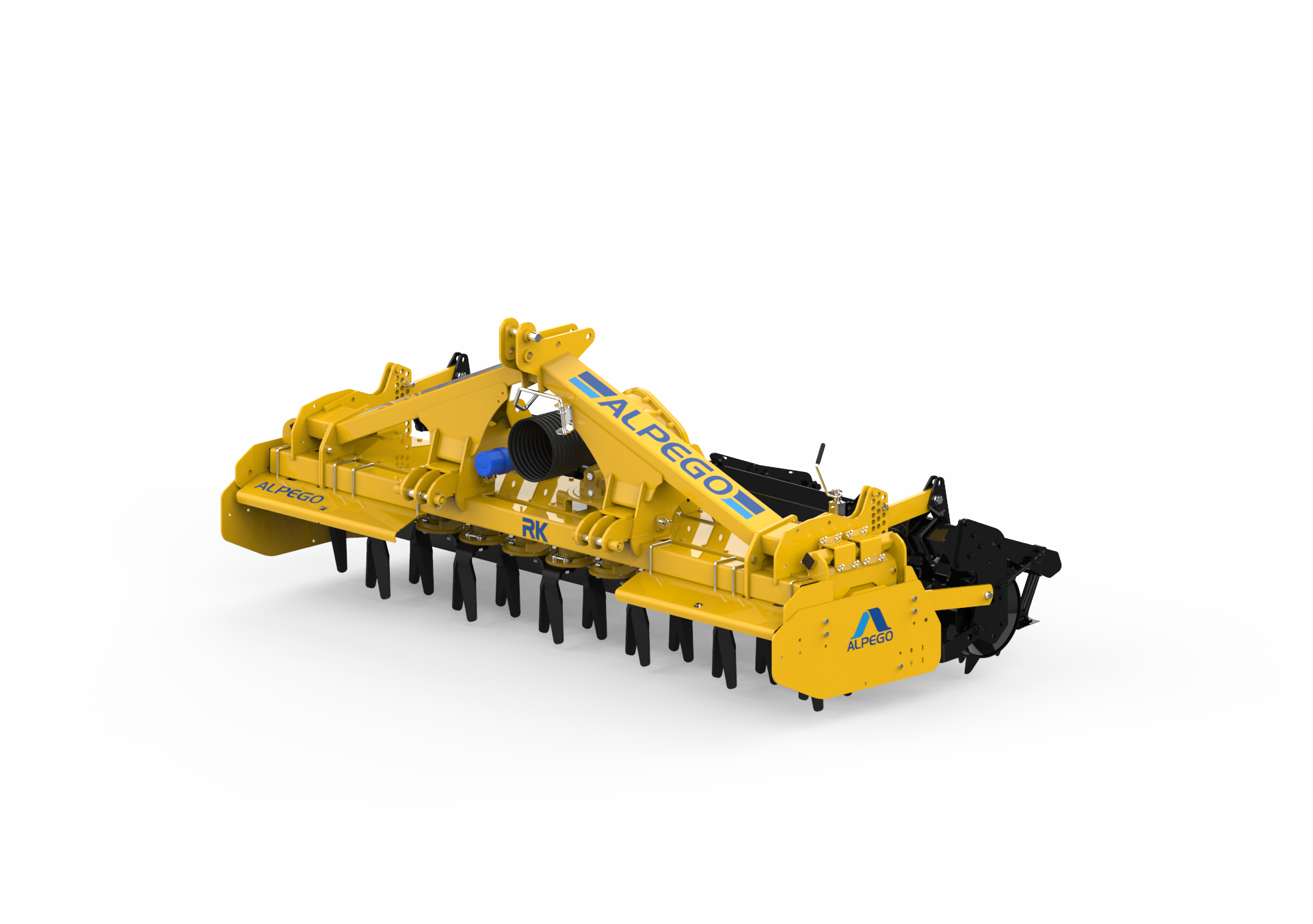

RK Power Harrow
The professional rigid power harrow ROTODENT RK, thanks to its TWIN-FORCE tine support with tapered roller bearings is particularly suited in combination with seed drills.
90-200HP
- Strong Box section chassis made from fine grain Swedish steel
- Round blade supports and stone guards deflectors – Anti-Jamming
- “Twin Force” modular rotors with Timken Taper roller bearings
- Double labyrinth rotor seal protection – 2 YEAR WARRANTY
- Rear suspension mounted side guards
- Rear leveling bar with automatic level control and screw adjusters
- Floating lower link mountings and rubber loaded side shields
- P.T.O drive shaft with auto cut out Cam-Clutch – STANDARD
- Standard rotor speed 431 RPM other speeds/gears available on request
- 14mm x 300mm bolted special angled blades for low power requirement
- Phased blade timing for lower power requirement
- Floating roller mounted on parallelogram
MODEL | HP | WORKING WIDTH | P.T.O | No. BLADES | No. ROTORS |
---|---|---|---|---|---|
RK 300 | 90-200 | 3.0M | 1000 | 12+12 | 12 |
RK 350 | 100-200 | 3.5M | 1000 | 14+14 | 14 |

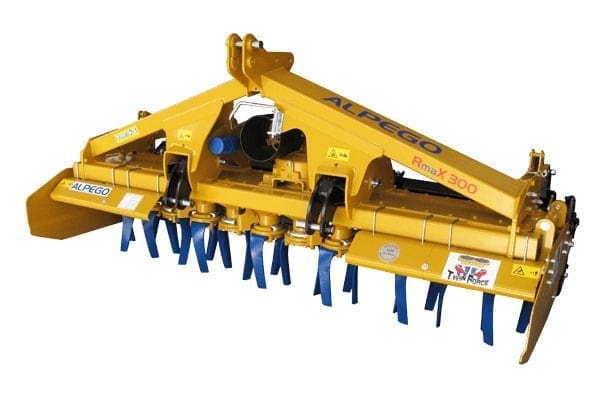

Rmax Power Harrow
The ROTODENT RmaX is a rigid power harrow unique in its category. Its strong point is the TWIN-FORCE “maX” mechanical peculiarity and its heavy-duty structure.
120-320HP
- Extra Heavy Duty – Can work directly into the ground
- QUICK CHANGE BLADES FITTED – STANDARD
- EXTRA Strong chassis Made from Fine Grain Swedish Steel
- Round Blade supports – for less drag and lower power
- “TWIN FORCE” Modular Rotors with TIMKEN TAPER roller bearings
- Double Labyrinth Rotor seal protection 2 YEAR WARRANTY!
- Extra Deep Clearance Rotor Shafts for excellent crop stubble handling
- Rear Levelling Bar with Automatic Level Control and screw adjusters
- Floating lower Link mounting and Spring Loaded side Shields
- P.T.O Drive shaft with Auto Cut out Cam-Clutch
- Standard Rotor speed 343 RPM other speeds/ Gears available on request
- Special angled Blades with sweep back for less power
- Phased Blade timing for lower power and smoother running
- Floating roller mounted on parallelogram with fast depth adjustment
OPTIONS
- Cage or Packer Rollers available
MODEL | WORKING WIDTH | P.T.O | No. BLADES | No. ROTORS |
---|---|---|---|---|
RmaX 300 | 3.0m | 1000 | 12+12 | 12 |
RmaX 350 | 3.5m | 1000 | 14+14 | 14 |

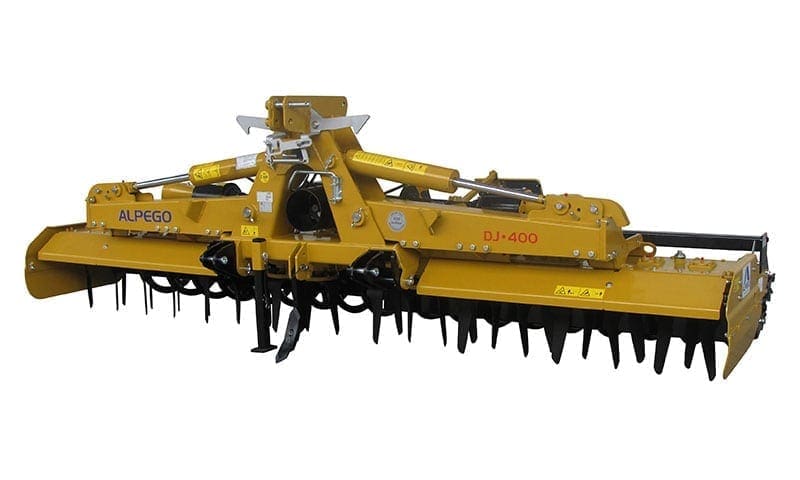

DJ Power Harrow
The folding power harrow ROTODENT DJ is made of high-strength steel, offering high structural performances while light in weight.
110-220 HP
- Strong Chassis made from fine grain Swedish steel
- Round blade supports – for less drag and lower power
- Top and bottom ball bearing rotors for extra rotor shaft support
- Grease nipple on top rotor bearing for long life
- Cast steel stone protection collars fitted standard
- Rear leveling bar with automatic level control and screw adjusters
- Floating lower link mounting and frame with rubber loaded side shields
- Lateral side P.T.O drive shafts with auto cut out cam-clutches
- Standard rotor speed 350 RPM – other speeds available on request
- Special 12mm x 300mm angled blades for less power
- Phased blade timing for lower power and smoother running
- Floating roller mounted on parallelogram with fast depth adjustment
- Narrow 2.5m transport and road lights standard
MODEL | WORKING WIDTH | P.T.O | No. BLADES | No. ROTORS | TRANSPORT
WIDTH |
---|---|---|---|---|---|
DJ 460 | 4.6m | 1000 | 18+18 | 18 | 2.5M |

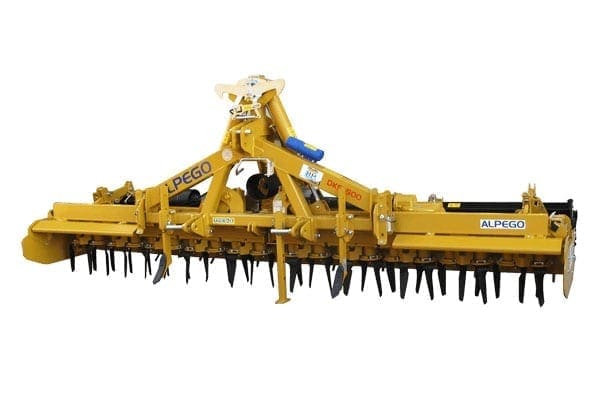

DK-TOP Power Harrow
The ROTODENT DKS is a professional folding power harrow thanks to its TWIN-FORCE tine support with tapered roller bearings is particularly suited in combination with seed drills.
110-350HP
- 1000 rpm gearbox, rotor shaft rotation Z=30/24 (359 g./m.)
- Linkage cat. 3, oscillating
- Movable side plates
- Levelling board on roller. Independently adjustable
- Central track eraser
- Central track eraser 1″3/8 Z=21
- Lateral drive shafts with shear bolt or automatic cam clutch (NOT PROVIDED AS STANDARD)
- Rear light boards
OPTIONS
- Track eraser pair
- NO-STOP Track eraser pair
- Hydraulic depth adjustment
- Hydraulic carrier for mounting a seed drill
- Rear P.T.O.
- Drop forged tines
- Kit for quick release of forged tine
- Cage roller
- Spike roller
- Spiral roller
- Packer roller
- Rubber roller
Model | HP | WORKING WIDTH | WORKING DEPTH | No. ROTORS | No. TINES |
DKTOP-400 | 110-350 | 4m | 280mm | 16 | 16+16 |
DKTOP-450 | 150-350 | 4.5m | 280mm | 18 | 18+18 |
DKTOP-500 | 160-350 | 5m | 280mm | 20 | 20+20 |
DKTOP-600 | 175-350 | 6m | 280mm | 24 | 24+24 |

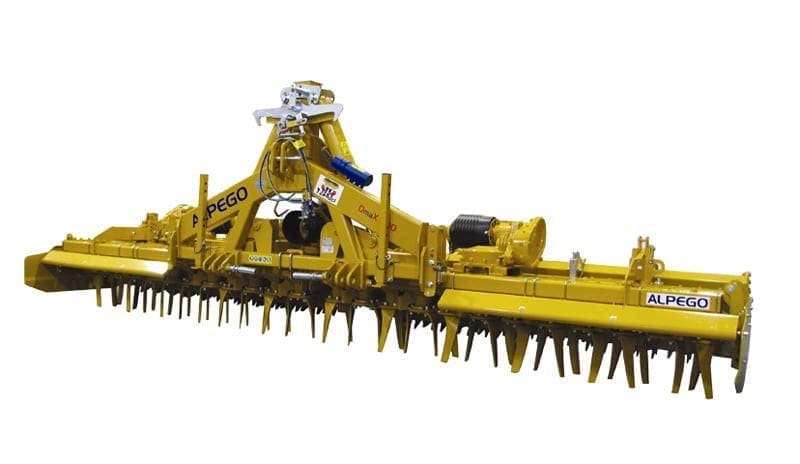

Dmax Power Harrow
The Rotodent DmaX is a folding power harrow unique in its category. Its strong point is the TWIN-FORCE “maX” mechanical peculiarity and its heavy-duty structure.
180-500 HP
- 1000 Rpm central drive /min.
- Linkage cat.3 + 4, oscillating and 4 USA ( for DmaX-800)
- Central track eraser
- Supporting legs
- Leveling board on the roller. Independently adjustable
- Multispeed lateral gearboxes, rotor shaft rotating at Z=29/25 (368 rpm) Z=30/24 (396 rpm)
- Central drive shaft 1″3/4 Z=20
- Lateral driveshafts with automatic cam clutch
- Drop-Forged tines (STANDARD + RAPIDO Version)
- Electronic hour-counter
OPTIONS
- Track eraser pair
- NO-STOP Track eraser pair
- Hydraulic depth adjustment
- Hydraulic carrier for mounting a seed drill
- Drop forged tines
- Kit for quick release of forged tine
- Packer roller
Model | HP | WORKING WIDTH | TRANSPORT
WIDTH |
WORKING
DEPTH |
N. ROTORS | N. TINES |
DmaX 500 | 180-440 | 5m | 2.5m | 300mm | 20 | 20+20 |
DmaX 600 | 200-440 | 6m | 2.5m | 300mm | 24 | 24+24 |
DmaX 700 | 250-500 | 7m | 2.5m | 300mm | 28 | 28+28 |
DmaX 800 | 250-500 | 8m | 2.5m | 300mm | 32 | 32+32 |
