Joskin Modulo2 14000MEB

EAN: N/A SKU: 124245 Category:

$140,000.00 +GST

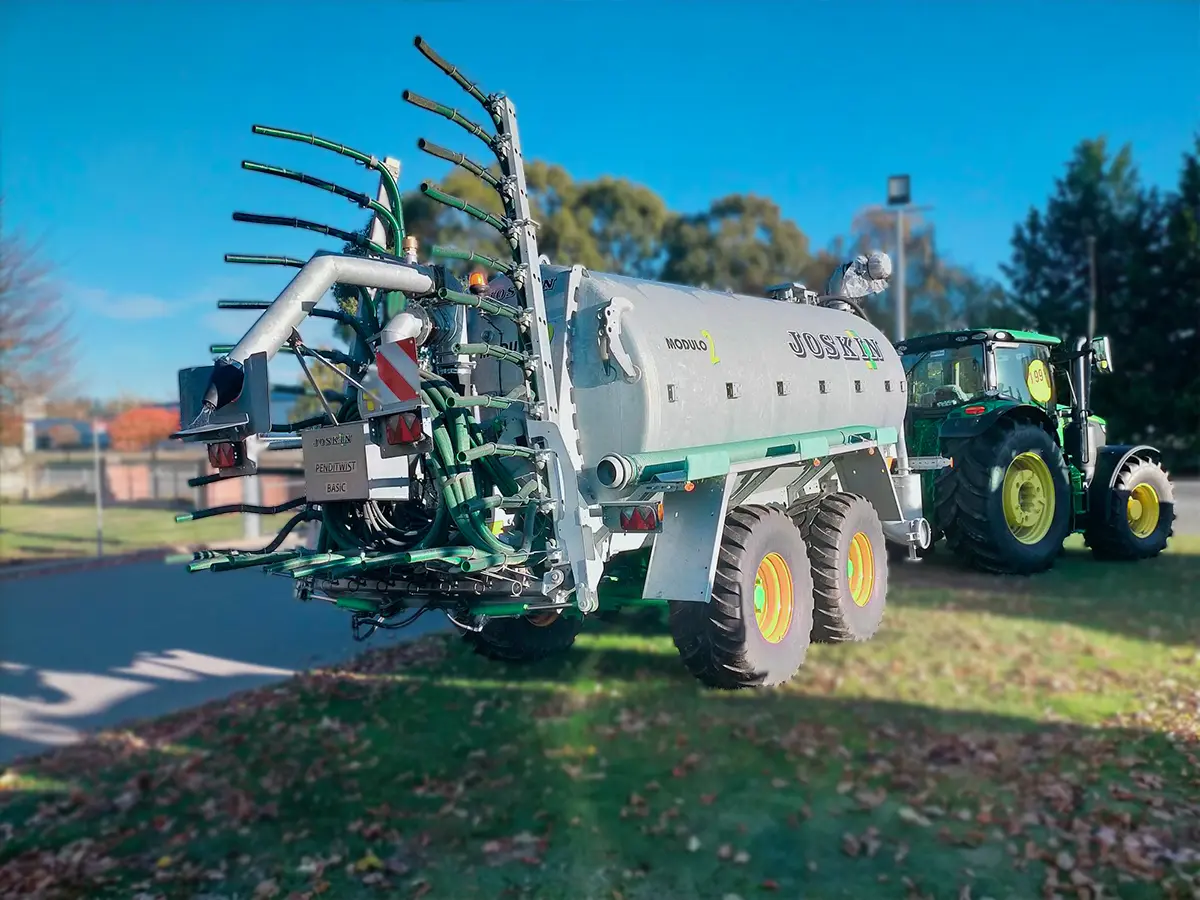

NEW Joskin Modulo2 14000MEB Slurry Tanker.

14000L Tandem axle Slurry Tanker with Boom.

TANK:
* Theoretical capacity 14,499L
* Fully galvanized tank inside and outside manufactured from special steel (55Kg)
* Internal baffle plates to stop slurry sloshing forward and back
* 600mm Diameter rear tank manhole access
* 2 x Half-circular indicators (2″ Diameter)
* Galvanized Hose carrying mudguards
* Pre equipped for an 8″ (200mm) Jumbo Self-Filling arm (097)
* Pre-equipment for a hydraulic mixer (896)

BOOM:
* Penditwist Basic 7.5m Spreading Boom
* Applies effluent directly onto the ground in Lines – 30x rows at 25cm Spacing

PUMP:
* Vacuum pump: JUROP PN 106 (11,000 L/min) (339)
* 1000 rpm speed-increasing gearbox on the pump with Automatic Lube (2253)
* Hydraulic Control of Pump change over (DA) From Vacum to Pressure

CHASSIS and DRAW BAR:
* Fully galvanized chassis
* Cross sprung draw bar with 50mm swivel eyelet and hydraulic jack stand
* Adjustable bolted axle – for re-positioning weight transfer when fitting rear tools

AXLE:
* Joskin Roll-Over boogie tandem axle with parabolic leaves 1.600mm
* Free steering rear axle with shock absorber and hydraulic locking system with Hydraulic brakes

TYRES:
* 560/60 R22.5 Verdestein Floatation Trac

P.T.O
* 6-Spline Walterscheid 1000RPM c/w Wide Angle

LIGHTING:
* Recessed double truck-type road lights
* Flashing beacon

Located at our Ashburton branch.
For more info, phone your local sales team on 0800 432 633.

Download Spec Sheet
