Loader Wagons

With the NEW Faro 4010 combiline, offering new models in the medium capacity loader wagon range, for tractors ranging between 90 and 150 HP.
The 31 knife bank and powerful rotor drive for higher capacity make the new Faro a high-performance loader wagon. The Faro 4010 combine can also be used as a harvest transport wagon, turning it into a cost-effective all-rounder.
Also available with rear cross conveyor for cut and carry operations

• Easy Pivoting Knife bank & Hydraulic Swing In/Out (NZ Std Spec)
• Pick-up c/w 6 rows of tines & Swath roller (NZ Std Spec)
• Steered pneumatic Pick – Up wheels 16×650-8
• 750mm Rotary Spiral compression rotor c/w 7 rows of fingers
• 27 Knives with 51mm Cutting Length
• Wide angle PTO driveshaft with Cam-Clutch 1000RPM 1400Nm Torque
• Tandem axle with Hydraulic brakes (Optional Steering Axle) 12 Tonne rated
• Scraper floor with double chain drive & adjustable speed Forward/Reverse
• Side access Door with Ladder and Mudguards (NZ Std Spec)
• Metal sections galvanised and powder coated
• Load Sensing Hydraulics for power saving (NZ Std spec)
• Low Hitch Drawbar (NZ Std Spec)
• Direct Control Std on “L” Models and Power Control Std on “D” Models

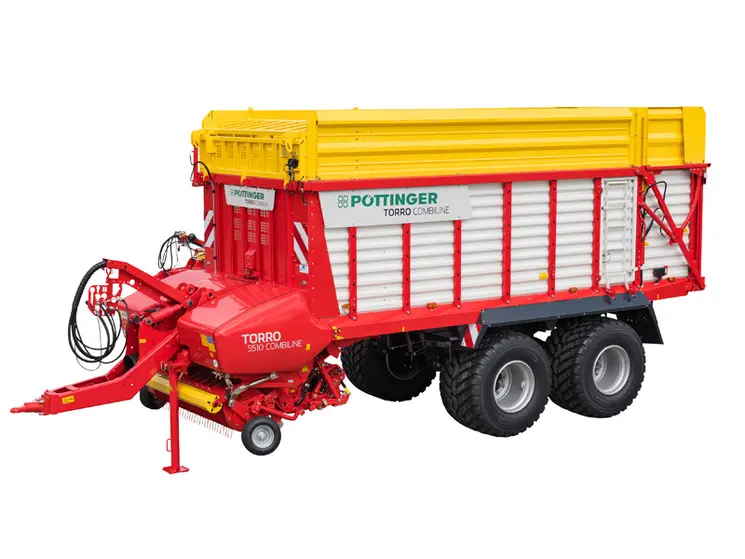

2 in 1 silage/harvesting combination loader wagon
Suiting tractors of 130 to 220 HP ratings
Ideal loader wagon for the larger size farming or medium size for contracting operations.
Also available with rear cross conveyor for cut and carry operations

• Easy Pivoting Knife bank & Hydraulic Swing In/Out (NZ Std Spec)
• Pick-up c/w 6 rows of tines & Swath roller (NZ Std Spec)
• Steered pneumatic Pick – Up wheels 16×650-8
• 800mm ROTARY Spiral compression rotor with 8 rows of fingers
• 31 Knifes 45mm Cut Length – Auto Loading system (NZ Std Spec)
• Wide-angle PTO with Cam-Clutch 1000RPM 1600Nm Torque
• Tandem axle with Hydraulic brakes (Optional Steering Axle) 17 Ton rated
• Scraper floor with double chain drive & adjustable speed Forward/Reverse
• Side access Door with Ladder and Mudguards (NZ Std Spec)
• Metal sections galvanized and powder coated
• Load Sensing Hydraulics for power saving (NZ Std spec)
• Low Hitch Drawbar (NZ Std Spec)
• Direct Control Std on “L” Models and Std on “D” Models

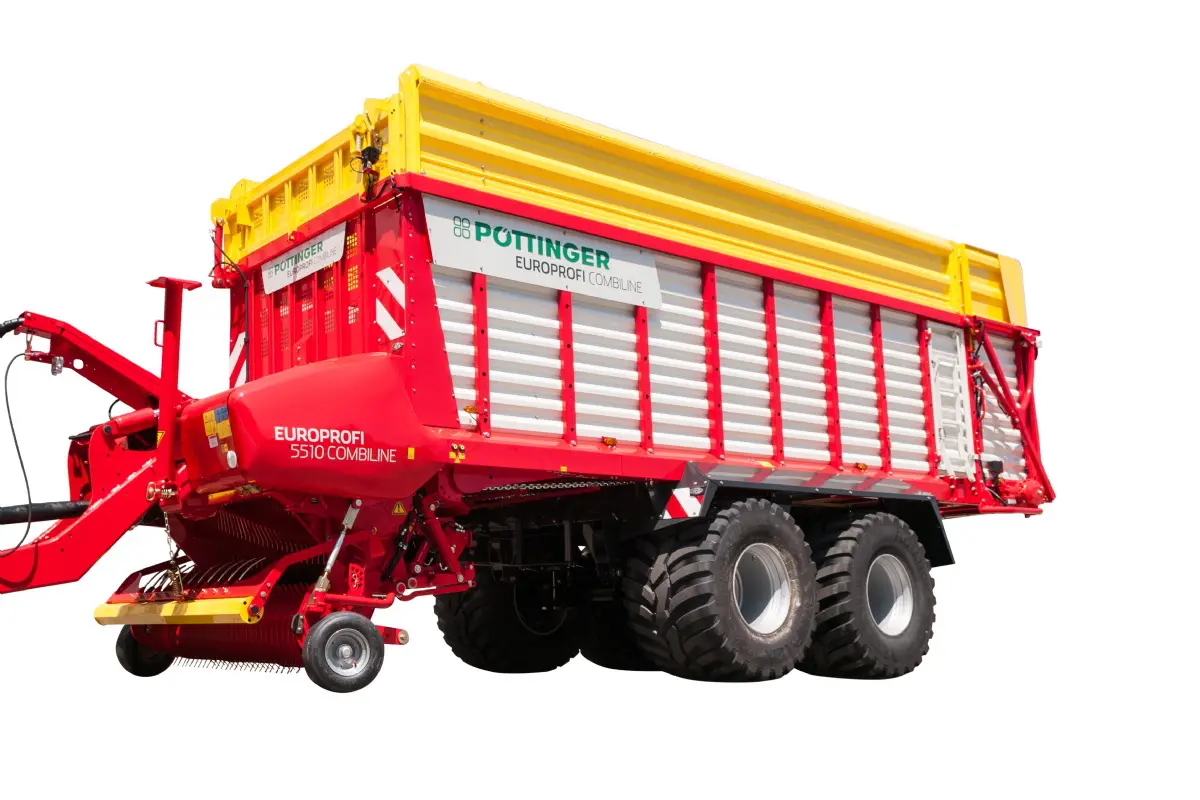

High performance multi-purpose loader wagons with rotors. Up to 300HP

• NEW! Lowered scraper floor – the forage is conveyed upwards to the rear for uniform and smooth discharge with a low power requirement.
• Easy move pivoting Knife bank and Hydraulic Swing In/Out
• Pick-up c/w 6 rows of 14 Double tines per row – Huge performance.
• Swath roller and Floating suspension for ground hugging
• Steered pneumatic Pick – Up wheels 16×650-8
• 800mm ROTOMATIC Spiral compression rotor c/w 8 rows of fingers
• Direct Drive Gearbox
• 45 Knifes with 34mm Cutting Length – Auto Loading system Standard
• Wide angle PTO driveshaft with Cam-Clutch 1000RPM 2100Nm Torque
• Tandem axle with Hydraulic brakes with Self Steer Axle (NZ Std Spec)
• Scraper floor 4 chain drive, infinitely adjustable speed Forward/Reverse
• Central Lube scraper floor chains
• Side access Door with Ladder and Mudguards Standard
• Metal sections galvanized and powder coated
• Load Sensing Hydraulics for power saving (NZ Std spec)
• Power Control Std on “L” Models and “D” Models (ISOBUS compatible)

• Easy move pivoting Knife bank and Hydraulic Swing In/Out
• Pick-up c/w 6 rows of 15 Double tines per row – Huge performance.
• Swath roller and Floating suspension for max performance
• Steered pneumatic Pick – Up wheels 16×650-8
• 800mm ROTOMATIC Spiral compression rotor with 8 rows of fingers
• 45 Knifes with 34mm Cutting Length – Auto Loading system Standard
• Wide-angle PTO driveshaft
• Scraper floor with 4 x chain drive, infinitely adjustable Forward/Reverse
• Side access Door with Ladder and Mudguards Standard
• Metal sections galvanised and powder coated
• Load Sensing Hydraulics for power saving (NZ Std spec)
• Low Hitch Drawbar (NZ Std Spec)
• Floodlight for loading Chamber standard
