When we designed our next-generation 800M- and 800MH Series machines, we relied on the input of the people who run them every day.

These job-proven midsize models have been redefining uptime, productivity, and low daily operating costs — in the forest and at the landing — because you wanted them to.

803mh

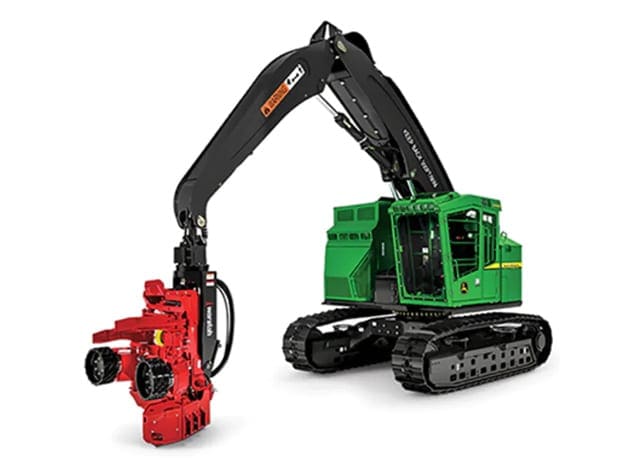

John Deere 803MH Tracked Harvester

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 224 kW (1,900 rpm)
  • Torque: 1,270 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Attachment Pump: 2x 209 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Attachment Pump: 2x 181 L/min
  • Powertrain: U6 extreme duty EXD
    • 2.8 (2.7) km/h low speed (Dedicated Travel)
    • 4.6 (4.8) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 245 kN
  • Swing Speed: 6.8 rpm
  • Swing Torque: 94,740 Nm
  • Operating Weight: 28,230 kg
Enquire Now
Brochure
859mh

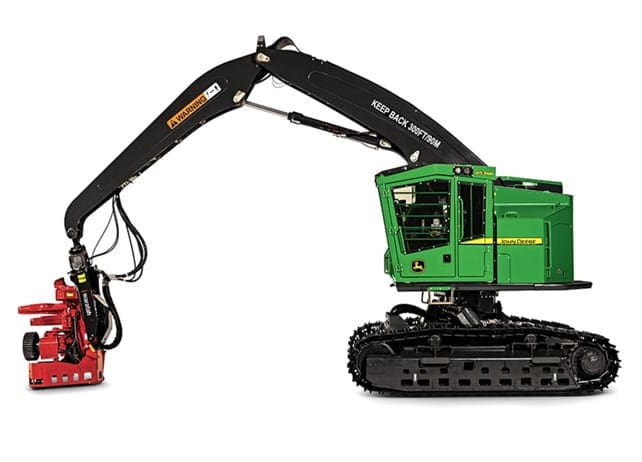

John Deere 853MH Tracked Harvester

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 224 kW (1,900 rpm)
  • Torque: 1,270 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Attachment Pump: 2x 209 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Attachment Pump: 2x 181 L/min
  • Powertrain: U7 EXD
    • 2.0 (2.0) km/h low speed (Dedicated Travel)
    • 4.3 (4.1) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 245 kN
  • Swing Speed: 6.8 rpm
  • Swing Torque: 94,740 Nm
  • Operating Weight: 30,320 kg
Enquire Now
Brochure
853mh

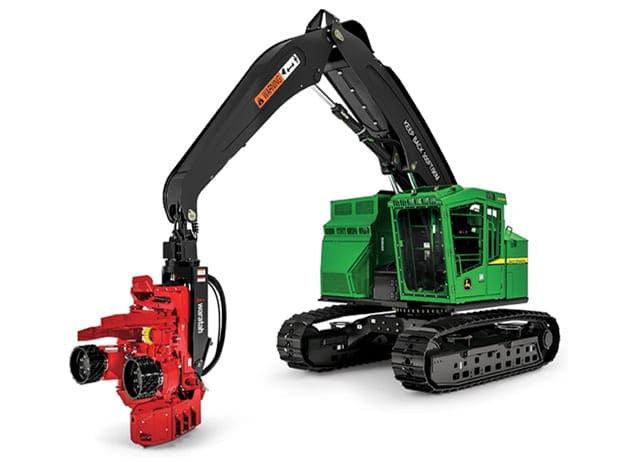

John Deere 859MH Tracked Harvester

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 494 L/min
    • Attachment Pump: 2x 209 L/min
  • Hydraulics: Dedicated travel system
    • Main Pump: 494 L/min
    • Travel Pump: 2x 190 L/min
    • Attachment Pump: 2x 181 L/min
  • Powertrain: U7L EXD
    • 1.7 (1.7) km/h low speed (Dedicated Travel)
    • 3.6 (3.7) km/hr high speed (Dedicated Travel)
  • Tractive Effort: 373 (384) kN (Dedicated Travel)
  • Swing Speed: 6.8 rpm
  • Swing Torque: 94,740 Nm
  • Operating Weight: 34,800 kg
  • Levelling Mechanism:
    • Forward = 26 deg
    • Side to Side = 14 deg
    • Rearward = 7 deg
Enquire Now
Brochure
953mh

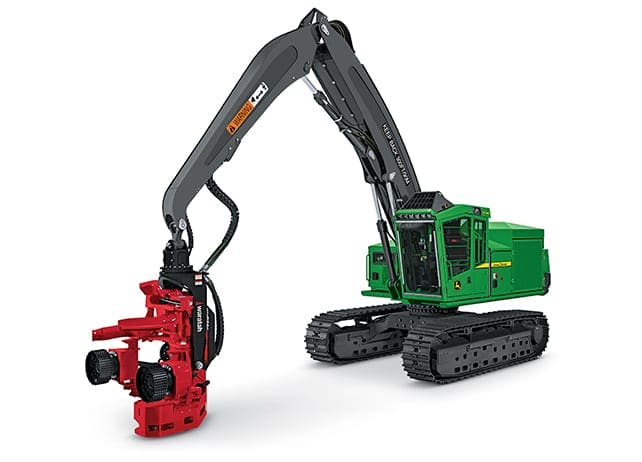

John Deere 953MH Tracked Harvester

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 532 L/min
    • Attachment Pump: 209 L/min
  • Powertrain: U7 EXD
    • 2.0 km/h low speed
    • 4.2 km/hr high speed
  • Tractive Effort: 322 kN
  • Swing Speed: 4.8 rpm
  • Swing Torque: 110,170 Nm
  • Operating Weight: 32,600 kg
Enquire Now
Brochure
959mh

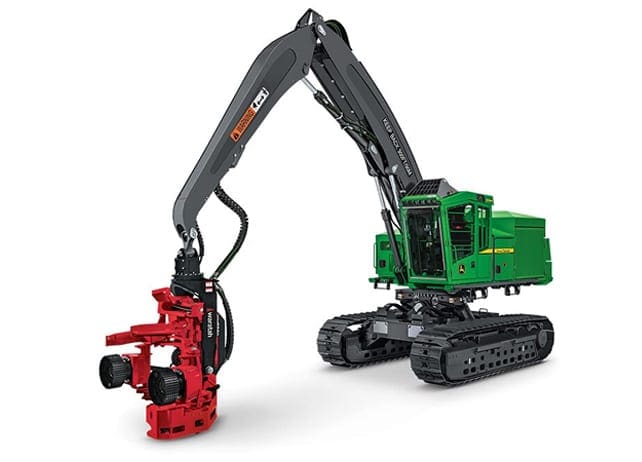

John Deere 959MH Tracked Harvester

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 532 L/min
    • Attachment Pump: 209 L/min
  • Powertrain: U7L EXD
    • 1.7 km/h low speed
    • 3.6 km/hr high speed
  • Tractive Effort: 373 kN
  • Swing Speed: 4.8 rpm
  • Swing Torque: 110,170 Nm
  • Operating Weight: 37,000 kg
  • Levelling Mechanism:
    • Forward = 26 deg
    • Side to Side = 14 deg
    • Rearward = 7 deg
Enquire Now
Brochure
959ml

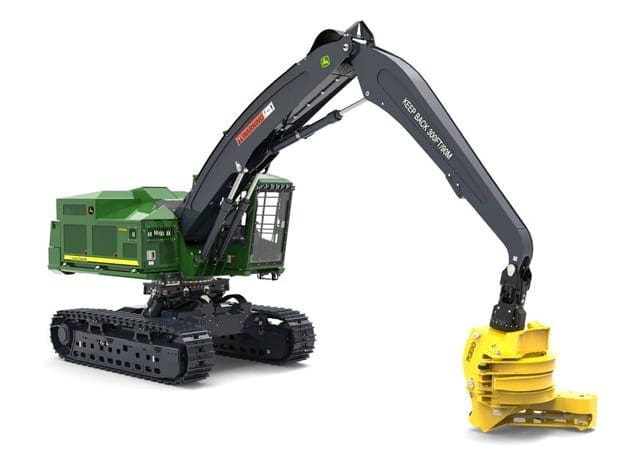

John Deere 959ML Shovel Logger

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 246 kW (1,900 rpm)
  • Torque: 1,392 (1,500 rpm)
  • Hydraulics: Standard travel system
    • Main Pump: 532 L/min
    • Attachment Pump: 209 L/min
  • Powertrain: U7L EXD
    • 1.7 km/h low speed
    • 3.6 km/hr high speed
  • Tractive Effort: 373 kN
  • Swing Speed: 5.0 rpm
  • Swing Torque: 110,170 Nm
  • Operating Weight: 36,910 – 38,250 kg
  • Levelling Mechanism:
    • Forward = 26 deg
    • Side to Side = 14 deg
    • Rearward = 7 deg
  • Max Boom Reach: 10.34m – Directional Feller

Max Boom Reach: 11.00m – Live Heel Shovel Logger

Enquire Now
Brochure
