The John Deere G-Series Forestry Swing Machine will redefine your expectations about what a swing machine can accomplish.

With eight models rated from 28 to 48 tonnes, all featuring robust undercarriage and mainframe, upsized swing bearings, reliable John Deere engines and superior hydraulics, their capabilities are industry-leading. And so is the operator comfort.

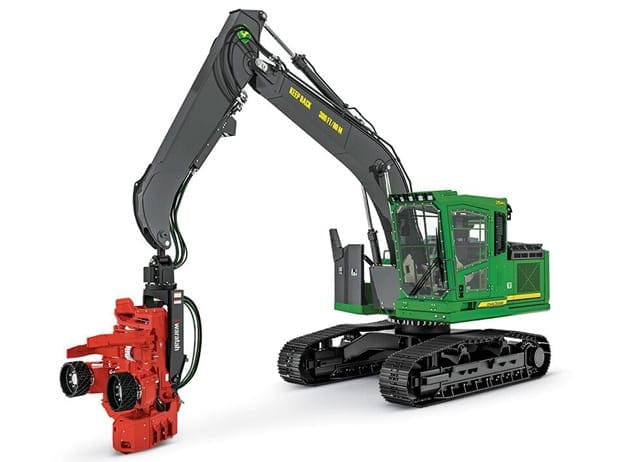

2154g

John Deere 2154G Swing Machine

  • Engine: John Deere 6080, 6.8 litres
  • Engine Power: 122 kW (2,000)
  • Powertrain: XDLC undercarriage
    • 2.6 km/h low speed
    • 3.6 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 236 L/m
  • Swing Speed: 12.6 rpm
  • Swing Torque: 74,376 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 34,352 kg

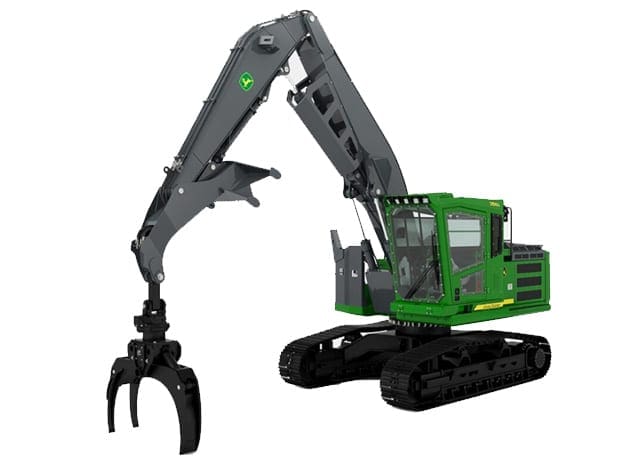

2156g

John Deere 2156G Swing Machine

  • Engine: John Deere 6080, 6.8 litres
  • Engine Power: 122 kW (2,000)
  • Powertrain: XDLC undercarriage
    • 2.6 km/h low speed
    • 3.6 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 236 L/m
  • Swing Speed: 12.6 rpm
  • Swing Torque: 74,376 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 35,724 kg

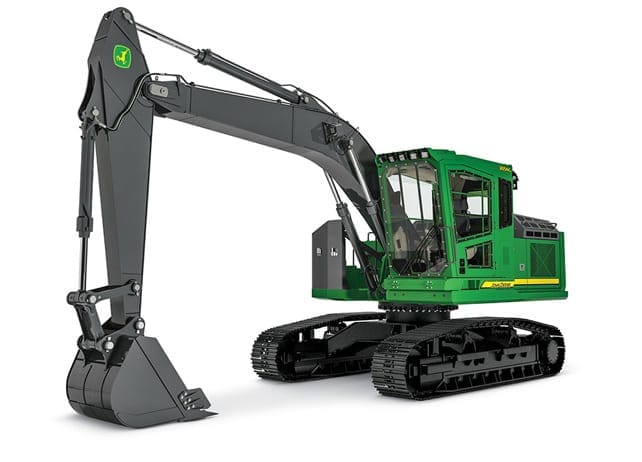

2654g

John Deere 2654G Swing Machine

  • Engine: John Deere 6080, 6.8 litres
  • Engine Power: 145 kW (2,100)
  • Powertrain: LC undercarriage
    • 2.6 km/h low speed
    • 3.9 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 248 L/m
  • Swing Speed: 10.6 rpm
  • Swing Torque: 107,869 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab

Operating Weight: 36,100 kg

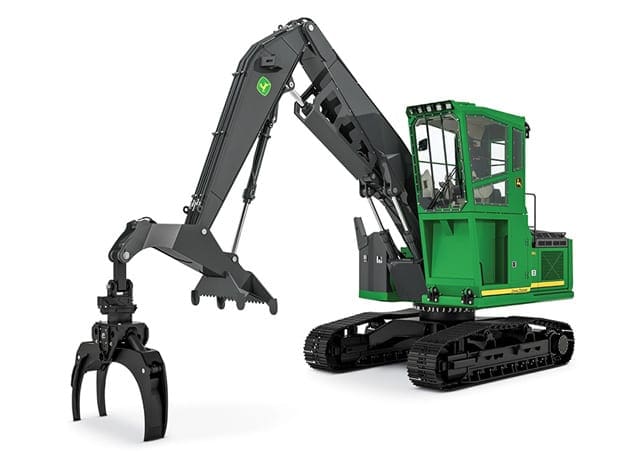

2656g

John Deere 2656G Swing Machine

  • Engine: John Deere 6080, 6.8 litres
  • Engine Power: 145 kW (2,100)
  • Powertrain: LC undercarriage
    • 2.6 km/h low speed
    • 3.9 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 248 L/m
  • Swing Speed: 10.6 rpm
  • Swing Torque: 107,869 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 36,100 kg

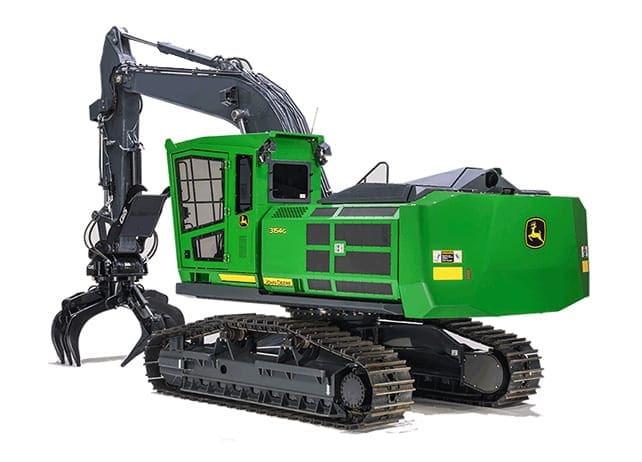

3154g

John Deere 3154G Swing Machine

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 186 kW (1,900)
  • Powertrain: LC undercarriage
    • 2.7 km/h low speed
    • 4.2 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 248 L/m
  • Swing Speed: 8.7 rpm
  • Swing Torque: 120,000 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 40,636 kg

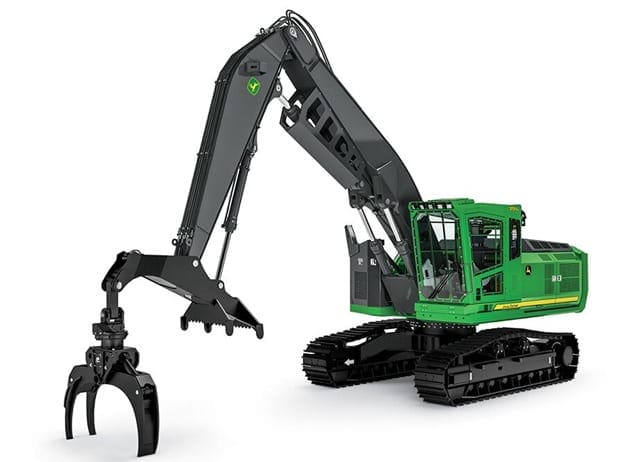

3156g

John Deere 3156G Swing Machine

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 186 kW (1,900)
  • Powertrain: LC undercarriage
    • 2.7 km/h low speed
    • 4.2 km/h high speed
  • Drawbar Pull: 30,350 kgf
  • Hydraulic Flow: 2x 248 L/m
  • Swing Speed: 8.7 rpm
  • Swing Torque: 120,000 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 42,647 kg

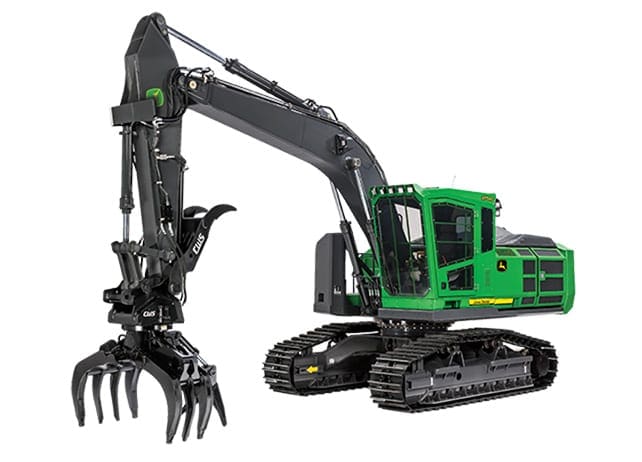

3754g

John Deere 3754G Swing Machine

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 202 kW (1,900)
  • Powertrain: LC undercarriage
    • 3.1 km/h low speed
    • 4.5 km/h high speed
  • Drawbar Pull: 36,102 kgf
  • Hydraulic Flow: 2x 304 L/m
  • Swing Speed: 11.0 rpm
  • Swing Torque: 120,000 Nm
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 46,740 kg

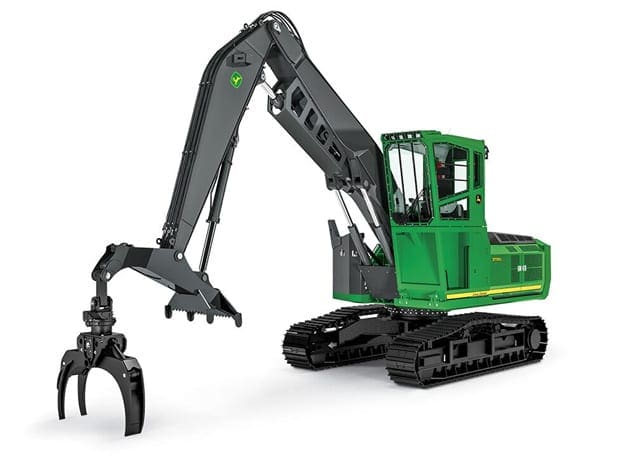

3756g

John Deere 3756G Swing Machine

  • Engine: John Deere 6090, 9.0 litres
  • Engine Power: 202 kW (1,900)
  • Powertrain: LC undercarriage
    • 3.1 km/h low speed
    • 4.5 km/h high speed
  • Drawbar Pull: 36,102 kgf
  • Hydraulic Flow: 2x 304 L/m
  • Swing Speed: 11.0 rpm
  • Swing Torque: 120,000 Nm (Optional 148,462 Nm)
  • Cab Options:
    • Side entry low cab
    • Rear entry high cab
  • Operating Weight: 48,625 kg
