Bogballe
Bogballe is one of the world’s leading manufacturers of fertiliser spreaders.
Contact one of our implement specialists for more details of the range, or to arrange a demo.

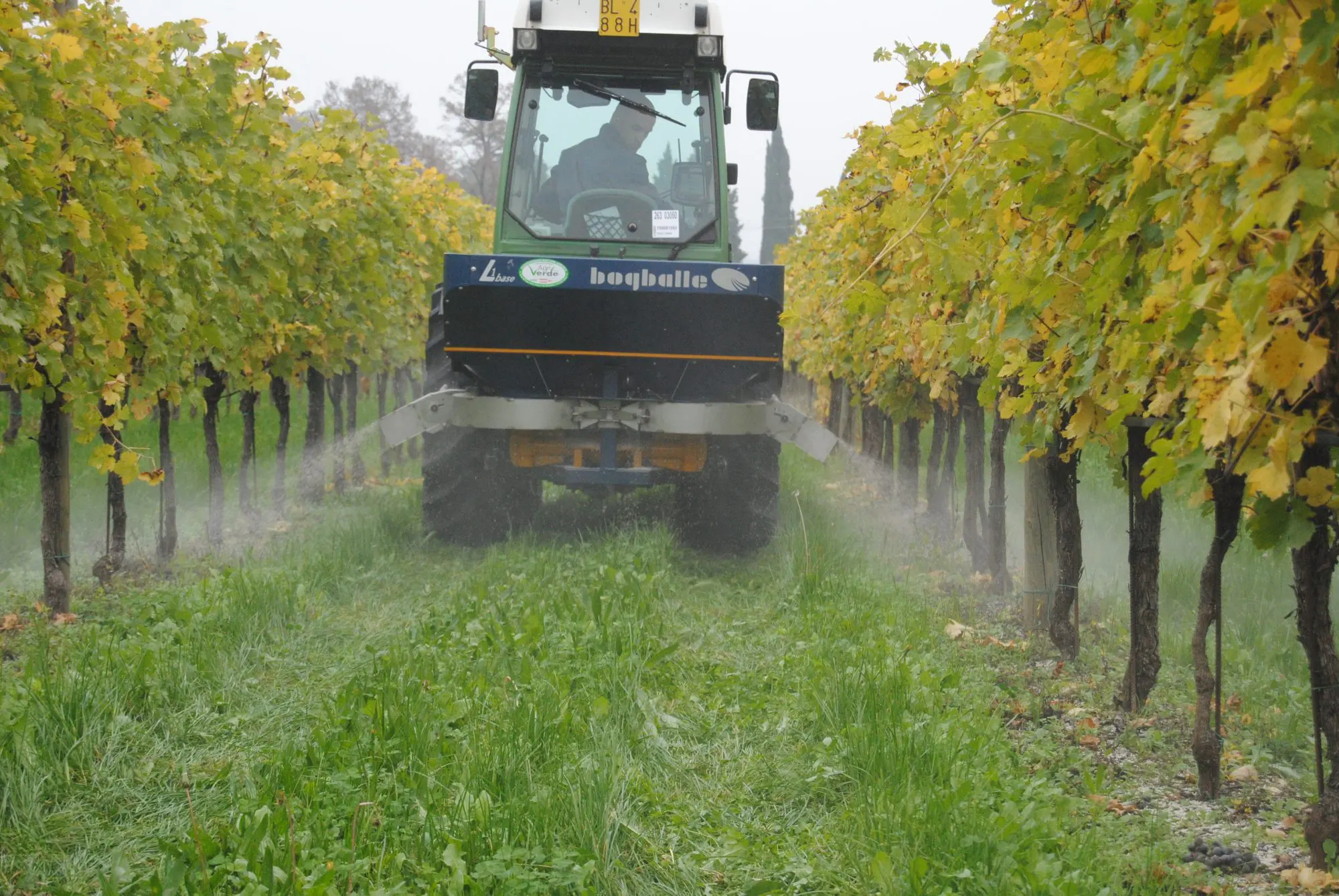

L15 Base Fertiliser Spreader
10-18m* Working Widths
500 – 1325* Ltr
1.25m Hopper Widths – per section
500Ltr – 1325Lt
- To border headland spreading – easy one-step lever engage/disengage
- P.T.O shaft with overload clutch
- Stainless Steel Discs, Hopper bottom, Nuts, Bolts and components
- Long-life wear-resistant Manganese Steel Vanes
- Quad Overlap (In – Centre spreading system) – the most accurate!
- Powder Coated “Flexi-Coat” paint finish
- L15W Weigh scale option – Indent only basis
| MODEL | HOPPER CAPACITY | *SPREAD WIDTH |
| L15 Base | 500 L | 10-18m* |
| L15 Base | 775 L | 10-18m* |
| L15 Base | 1050 L | 10-18m* |
| L15 Base | 1325 L | 10-18m* |

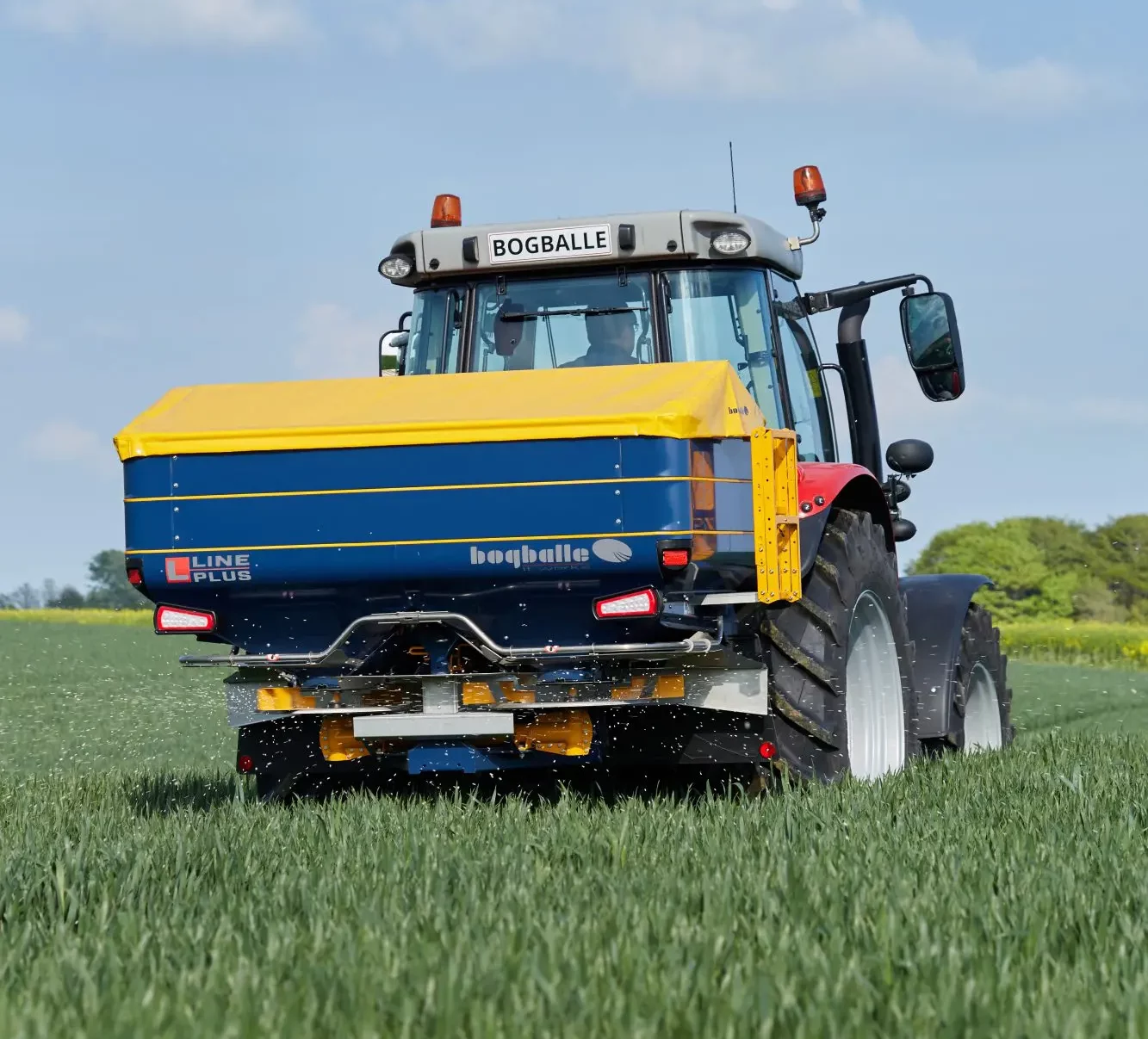

L20 Plus Fertiliser Spreader
10-24m*
700 – 2050Ltr*
2.1m Hopper Width
- To border headland spreading – easy one step lever engage/disengage
- E2 Vanes (Standard) for 10 – 24m* spread width (*Depends on Fertiliser)
- P.T.O shaft with overload clutch
- Stainless Steel Discs, Hopper bottom, Nuts, Bolts and components
- Long life wear resistant Manganese Steel Vanes
- Quad Overlap (In – Centre spreading system) – the most accurate!
- Powder Coated “Flexi-Coat” paint finish
- Options of Hydraulic shutter control or “ICON” Variable rate controller
| MODEL | HOPPER CAPACITY | *SPREAD WIDTH |
|---|---|---|
| L20 Plus | 700 L | 10-24m |
| L20 Plus | 1150 L | 10-24m |
| L20 Plus | 1425 L | 10-24m |
| L20 PLus | 1600 L | 10-24m |
| L20 PLus | 2050 L | 10-24m |

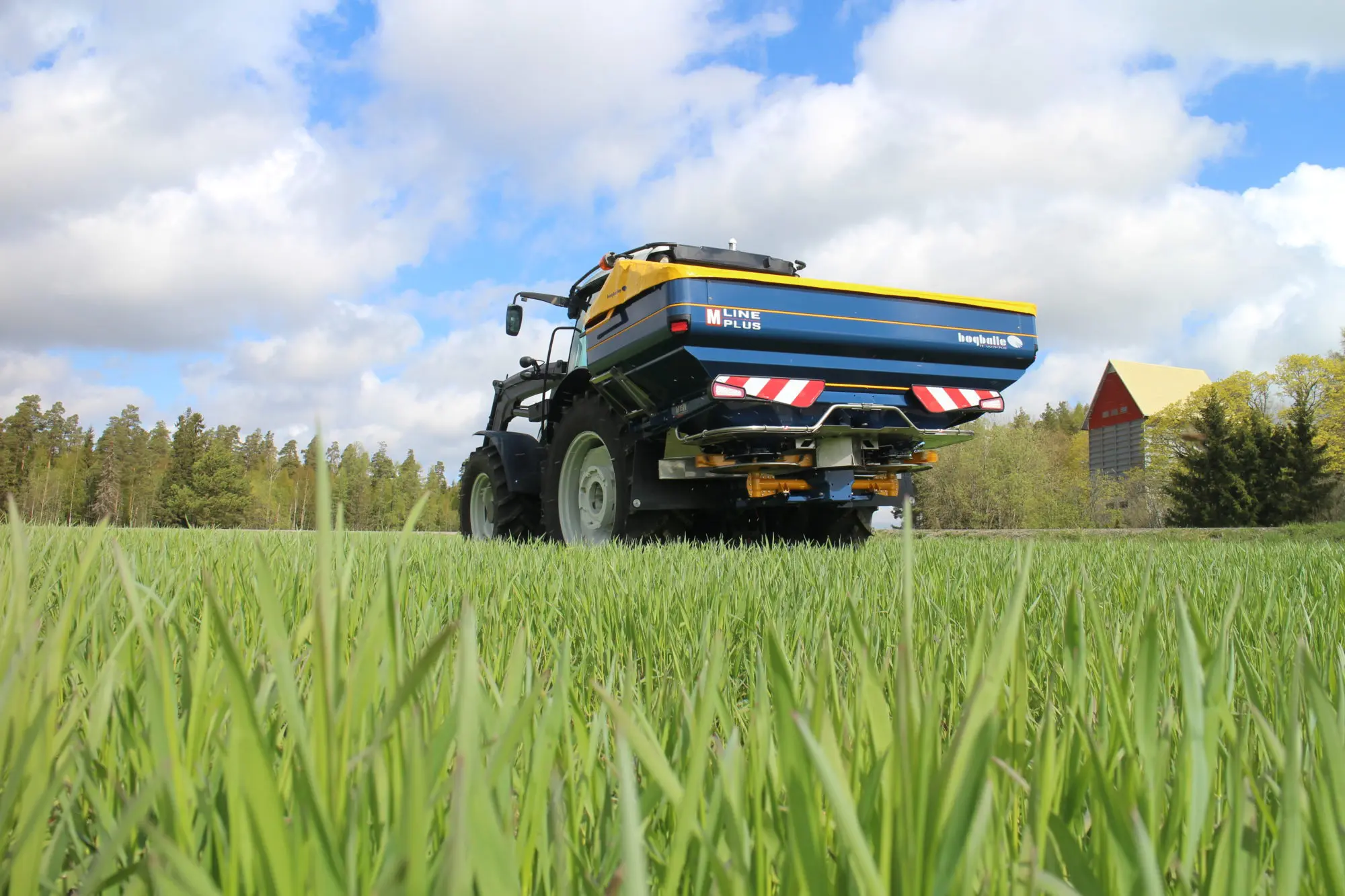

M35 Plus Fertiliser Spreader
12-42m*
1800-3450Ltr*
2.9m Hopper width
- Manual to border headland spreading – easy one step lever engage/disengage (Optional Electric)
- E6 Vanes (Standard) for 24 – 42M* spread width (*Depends on Fertiliser Type)
- P.T.O shaft with overload clutch
- Stainless Steel Discs, Hopper bottom, Nuts, Bolts and components
- Long life wear resistant Manganese Steel Vanes
- Quad Overlap (In – Centre spreading system) – the most accurate!
- Powder Coated “Flexi-Coat” paint finish
- Road lights – standard
- Optional Hydraulic shutter control or “ICON” or TOTZ Variable Rate Controller
| MODEL | *HOPPER CAPACITY | *SPREAD WIDTH |
|---|---|---|
| M35 Plus | 1800Ltr | 12-42m* |
| M35 Plus | 2250Ltr | 12-42m* |
| M35 Plus | 2550Ltr | 12-42m* |
| M35 Plus | 2700Ltr | 12-42m* |
| M35 Plus | 3000Ltr | 12-42m* |
| M35 Plus | 3300Ltr | 12-42m* |
| M35 Plus | 3450Ltr | 12-42m* |
*Spreading width may vary depending on fertiliser quality and vanes fitted.

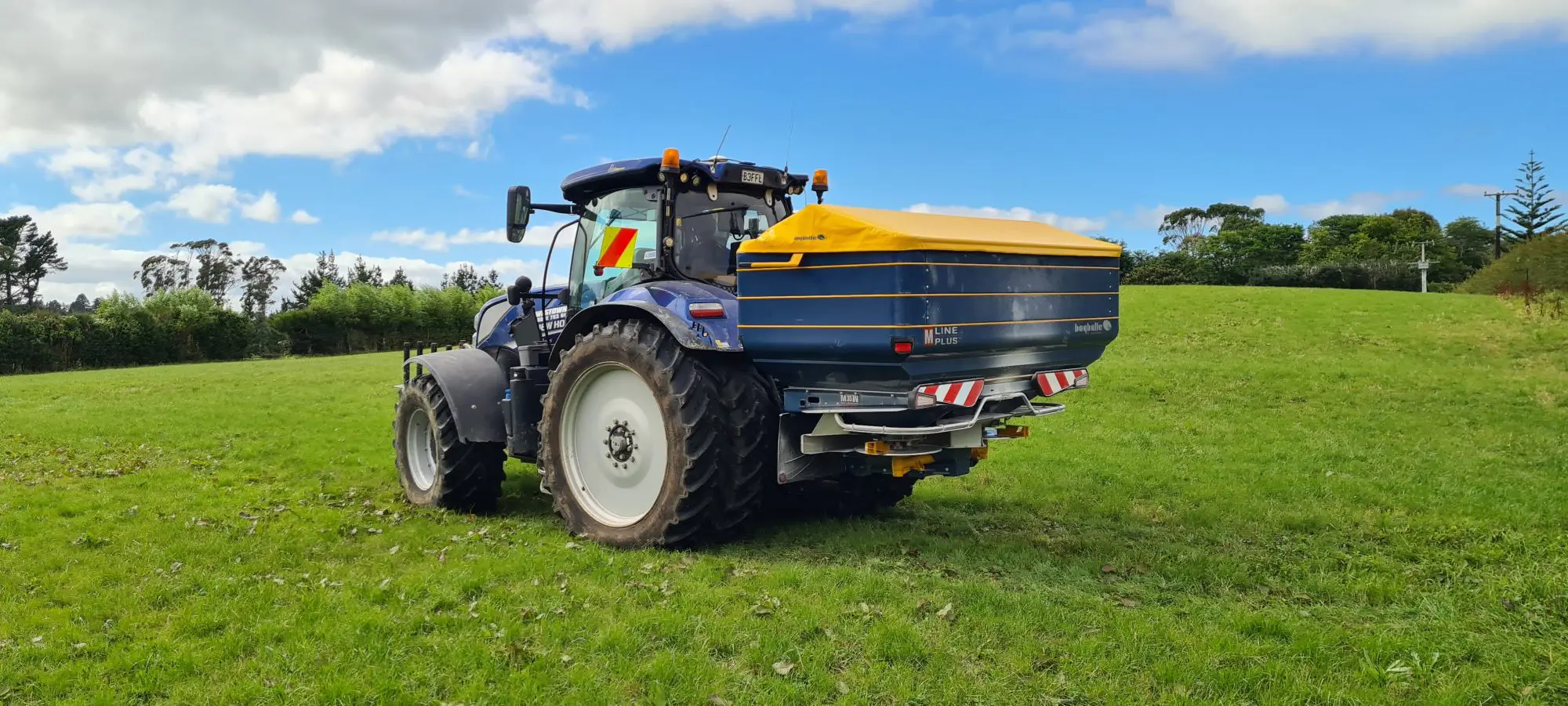

M35W Plus Base Fertiliser Spreader
12-42m*
1800-3750Ltr*
2.9m Hopper Width
- Load scales for full automatic calibration
- Electric Trend Shift Headland spreading to the Boarder (Included Standard)
- E6 Vanes (Standard) for 24 – 36M* spread width (*Depends on Fertiliser Type)
- P.T.O shaft with overload clutch
- Stainless Steel Discs, Hopper bottom, Nuts, Bolts and components
- Long life wear resistant Manganese Steel Vanes
- Quad Overlap (In – Centre spreading system) – the most accurate!
- Powder Coated “Flexi-Coat” paint finish
- TOTZ Variable Rate or ISOBUS Controller option
- Rear Road Lights
| MODEL | HOPPER CAPACITY | *SPREAD WIDTH |
|---|---|---|
| M35W | 1800Ltr | 12 – 42m* |
| M35W | 2250Ltr | 12 – 42m* |
| M35W | 2550Ltr | 12 – 42m* |
| M35W | 2700Ltr | 12 – 42m* |
| M35W | 3000Ltr | 12 – 42m* |
| M35W | 3300Ltr | 12 – 42m* |
| M35W | 3450Ltr | 12 – 42m* |
| M35W | 3750Ltr | 12 – 42m* |
*Spreading width may vary depending on fertiliser quality and vanes fitted.

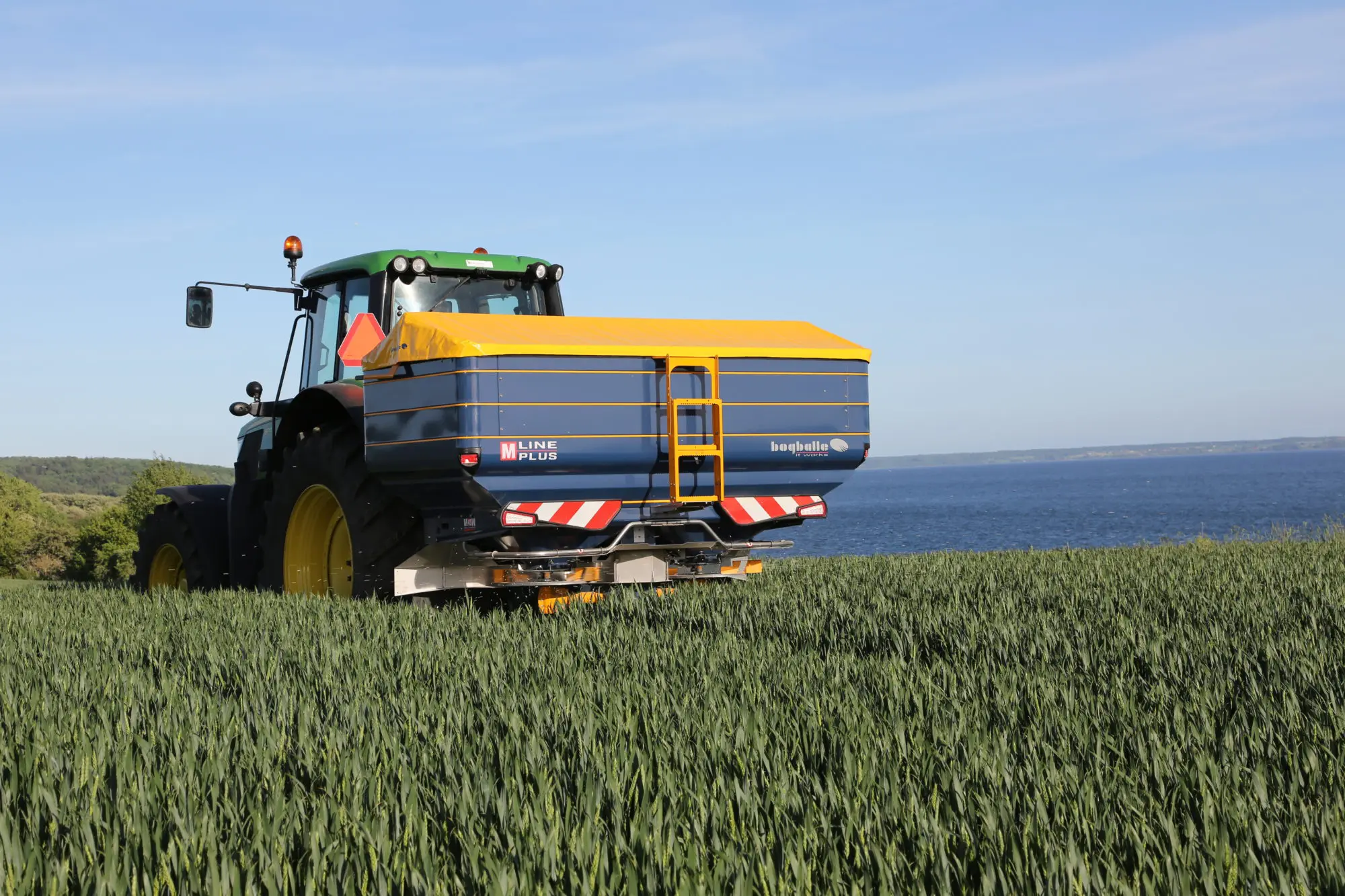

M45W Plus Fertiliser Spreader
12-42m*
3300-4500Ltr*
2.9m Hopper Width
- Load scales for full automatic calibration
- Electric trend shift headland spreading to the border (included standard)
- Ladder foldable with 4 outer and 1 inner Step
- Extra wide deflector guards
- E6 vanes (standard) for 24-36m* spread width (*depends on fertiliser type)
- P.T.O shaft with overload clutch
- Stainless steel discs, hopper bottom, nuts, bolts and components
- Long life wear resistant manganese steel vanes
- Quad overlap (in-centre spreading system) – The most accurate!
- Powder coated “Flexi-coat” paint finish
- Rear road lights – standard
- OPTIONAL: Variable Rate TOTZ or ISOBUS controllers
| MODEL | HOPPER CAPACITY | *SPREAD WIDTH |
|---|---|---|
| M45W PLUS | 3300Ltr | 12-42m* |
| M45W PLUS | 3450Ltr | 12-42m* |
| M45W PLUS | 4050Ltr | 12-42m* |
| M45W PLUS | 4500Ltr | 12-42m* |
*Spreading width may vary depending on fertiliser quality and vanes fitted.
