KMS Rinklin

Built on over 40 years of vineyard trimmer design and manufacturing experience KMS Rinklin was the first company to answer customer demand and supply a clear vision trimmer to the European market.

The KMS Rinklin Vineyard Trimmer line-up offers vineyard owners and managers a range of solutions based on their trimming needs.

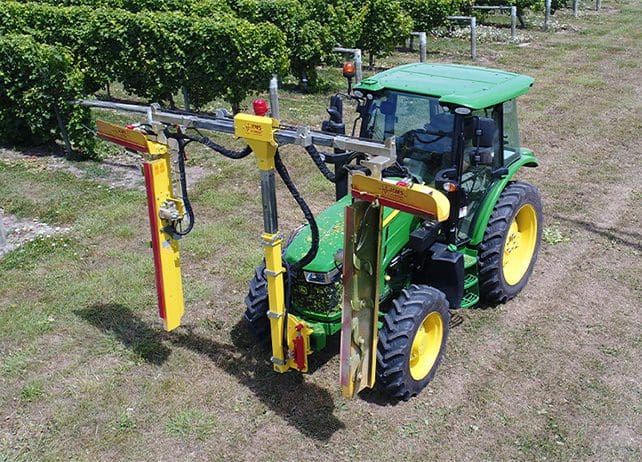

Standard Trimmers:
Single In-Row L / Double In-Row L / Double Over-Row UZ I

Base Features:

  • Cutter w. debris protection, powder-coated
  • Low rib belt, knife drive
  • Double impact protection on vertical cutters with automatic return. Top cutters are fixed
  • Folding transport safety guard for vertical and top cutter
  • Wire-repelling polychrome curved knives, hydraulic drive
  • Manual tilting of cutter, 30° l./r.
  • Storage trolley – Hydraulic height adjustment

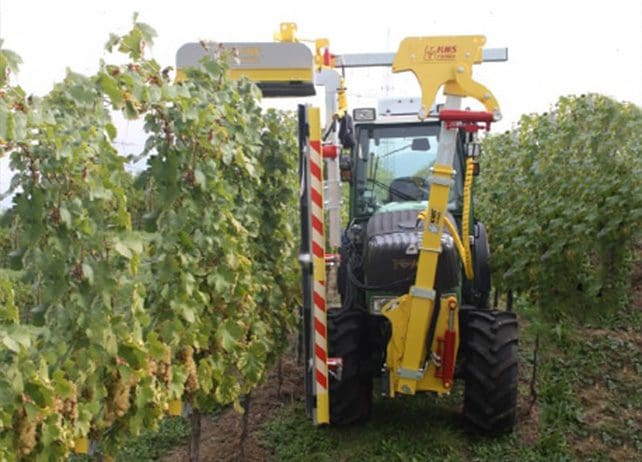

Variable Plus Trimmers:
Double In-Row L / Double Over-Row UZ / Single In-Row L / Single Over-Row UZ

Base Features:

  • Cutter w. spray protection, powder-coated
  • Low rib belt, knife drive
  • Double impact protection on vertical cutters, automatic return
  • Impact protection for horizontal cutters by gas springs, moves to immediately to transport position (folds 90° to the rear, towards the carrier vehicle)
  • Folding transport guard for cutter
  • Wire-repelling polychrome curved knives, hydraulic drive
  • Hydraulic width adjustment, 1 x d-a (row widths 1.80 – 3.50 m)
  • Manual tilting of cutter, 30° l./r.
  • Manual angle adjustment for horiz. cutter, 90°
  • Manual height adjustment for horiz. cutter, 400 mm
  • Storage frame with hydraulic height adjustment

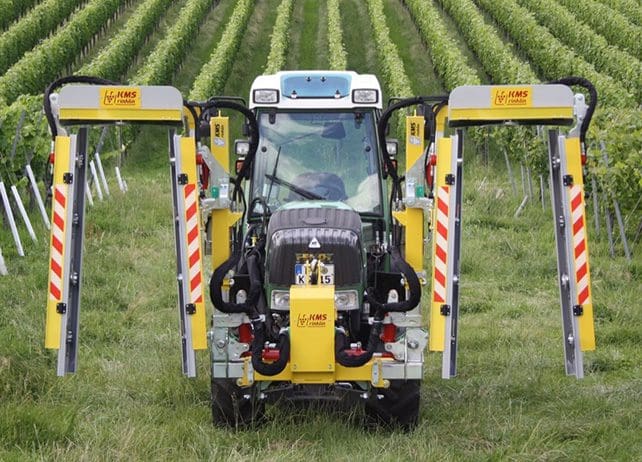

Clear Vision Trimmers
Double In-Row L / Double In-Row L Variable Plus / Double Over-Row UZ / Double Over-Row UZ Variable Plus

Base Features:

  • Left/right synchronised, individually adjustable wide width-shift frame, hydraulic, 2 x d-a
  • Two Lifts 100x100x 600 mm stroke, internal cylinder, plastic bearings adjustable for zero clearance, sync. and individual disengagement, integral hydr. lateral inclination, l./r. sync. and individual, incl. parallel linkage
  • Suspension of cutter
  • Cutter w. spray protection, powder-coated
  • Double impact protection on vertical cutters, automatic return
  • Folding transport guard for cutter
  • Wire-repelling polychrome curved knives, hydraulic drive
  • Width adjustment on lift mounting hydraulic, l./r. sync. and individual (row widths 2.0-3.1m)
  • Hydraulic tilting of cutter, 30° l./r.
  • Hydraulic cutting width adjustment, 15 – 55 cm, sync. and individual
  • Storage trolley, manual height adjustment
  • Comfort joystick control
