KMS Rinklin

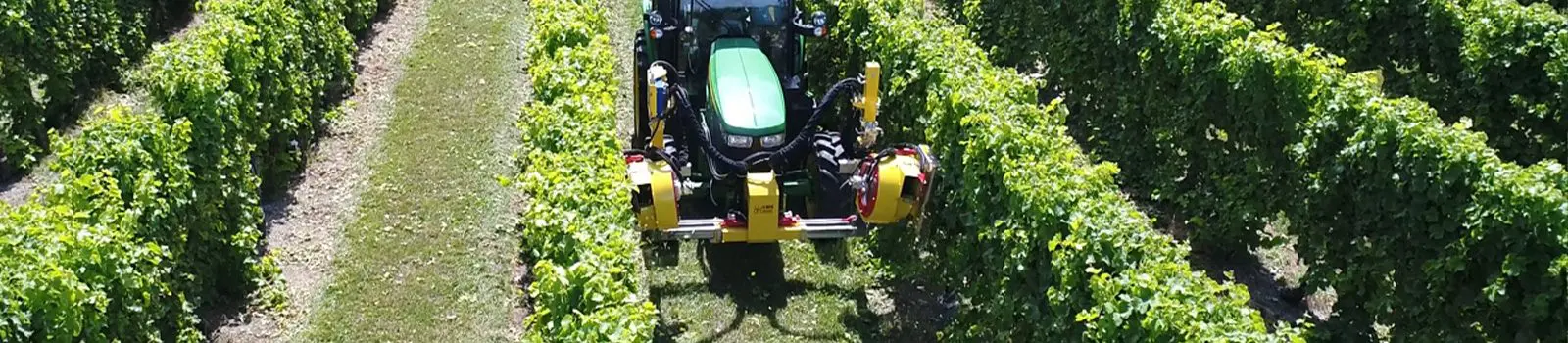

Vineyard Defoliators/Leaf Pluckers provide a well ventilated fruit zone and not only thin out the fruit zone carefully and gently, but also expels the cut foliage cleanly.

This not only reduces fungal infections in the fruit zone, but also in the bunches themselves.

The KMS Rinklin range includes various mounting options based on tractor and vineyard set-ups.

Single Sided:
EL 50 Mono / EL 50 DUO / EL 50 Twin Mono / EL 50 Twin DUO

Base Features:

  • Turbine housing aluminium, powder-coated, opens for cleaning
  • Roller housing stainless steel, opens for cleaning
  • Hydraulic MONO turbine, 1 x s-a
  • Steel blower fan, self-cleaning
  • Suction roller, round holes
  • Rubber rollers
  • Stepless adjustment of roll speed
  • Row sensing: gas-pressure-damped parallelogram
  • Manual tilt of plucker head
  • Storage Trolley

Two-Sided – Front Mounting:
EL 50 two-sided F MONO turbine / EL 50 two-sided F DUO turbine

Base Features:

  • Turbine housing aluminium, powder-coated, opens for cleaning
  • Roller housing stainless steel, opens for cleaning
  • Hydraulic MONO turbine, 1 x s-a
  • Steel blower fan, self-cleaning
  • Suction roller, round holes
  • Rubber rollers
  • Stepless adjustment of roll speed
  • Row sensing: gas-pressure-damped parallelogram
  • Manual tilt of plucker head
  • Oil cooler with thermal switch
  • Dual mast (Double in row) with sync or individual adjustments and hyd width adjust up to 3.5m
  • Storage Trolley

Two-Sided – Rear Mounting:
EL50 two-sided H MONO turbine / EL 50 two-sided H DUO turbine

Base Features:

  • Single axle chassis
  • Two HD masts with zero-clearance bearings, synchronised or individual lifting
  • Turbine housing aluminium, powder-coated, opens for cleaning
  • Roller housing stainless steel, opens for cleaning
  • Hydraulic MONO turbine
  • Steel blower fan, self-cleaning
  • Suction roller, round holes
  • Rubber rollers
  • Stepless adjustment of roll speed
  • Row sensing: gas-pressure-damped parallelogram
  • Width shifting (widths 1.80m to 2.50m)
  • Manual tilt of plucker head
  • Oil cooler with thermal switch
  • Hydraulic Power Pack integrated into the carrier frame (PTO driven)

UZ – Front Mounting:
EL 50 “UZ” F MONO Turbine / EL 50 “UZ” F DUO Turbine

Base Features:

  • Overrow frame with 500mm hydraulic width adjustment as standard
  • Turbine housing aluminium, powder-coated, opens for cleaning
  • Roller housing stainless steel, opens for cleaning
  • Hydraulic MONO turbine
  • Steel blower fan, self-cleaning
  • Suction roller, round holes
  • Rubber rollers
  • Stepless adjustment of roll speed
  • Row sensing: gas-pressure-damped parallelogram
  • Manual tilt of plucker head
  • Oil cooler with thermal switch
  • Storage Trolley

UZ – Rear Mounting:
EL 50 “UZ” H MONO Turbine / EL 50 “UZ” H DUO Turbine

Base Features:

  • Single axle chassis
  • Overrow frame with 500mm hydraulic width adjustment as standard
  • HD KMS lift mast 100x100x800mm stroke with zero clearance bearings and low maintenance
  • Hydraulic lateral shift of complete overrow frame
  • Turbine housing aluminium, powder-coated, opens for cleaning
  • Roller housing stainless steel, opens for cleaning
  • Hydraulic MONO turbine
  • Steel blower fan, self-cleaning
  • Suction roller, round holes
  • Rubber rollers
  • Stepless adjustment of roll speed
  • Row sensing: gas-pressure-damped parallelogram
  • Manual tilt of plucker head
  • Oil cooler with thermal switch
  • Hydraulic Power Pack integrated into the carrier frame (PTO driven)
+
