John Deere

Breaking new ground in the motor grader industry, John Deere SmartGrade™ Motor Graders offer the first-of-its-kind mastless 3D integrated grade control from the factory, arriving at your jobsite ready to work.

Unlike traditional aftermarket grade-control systems, John Deere’s innovative SmartGrade graders have no external masts or cables, allowing virtually unlimited range of grade-control and hydraulic functions. SmartGrade Motor Graders also include a new suite of intuitive automated features designed to lessen operator workload and boost productivity. Plus these machines are backed by your local John Deere dealer support team for added peace of mind.

620g-gp

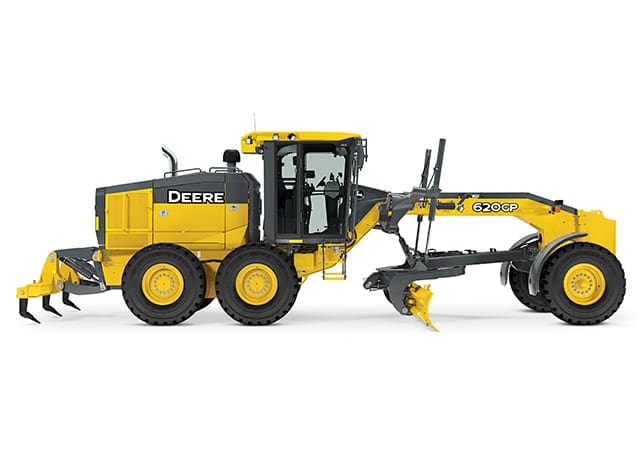

John Deere 620G/GP Motor Grader

  • Engine: John Deere, 6068, 6.8 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 149 kW
  • Torque: 915 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 14,091 kg
  • Ripper Force:
    • Penetration = 9,296 kg
    • Pry-Out = 11,222 kg
  • Operating Weight: 17,509 kg
622g-gp

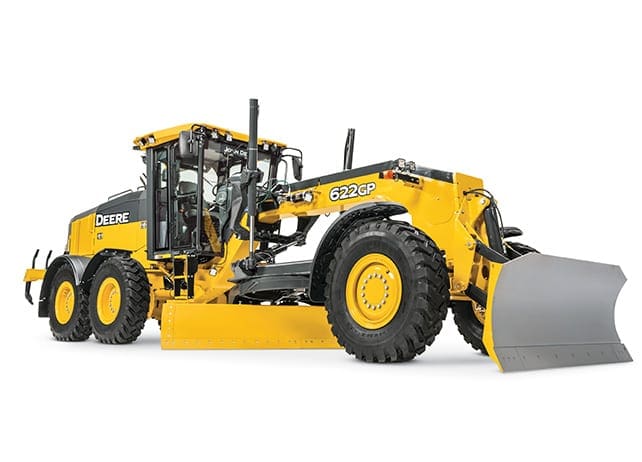

John Deere 622G/GP Motor Grader (6WD)

  • Engine: John Deere, 6068, 6.8 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 157 kW
  • Torque: 915 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 20,412 kg
  • Ripper Force:
    • Penetration = 9,488 kg
    • Pry-Out = 12,358 kg
  • Operating Weight: 18,280 kg
670g-gp

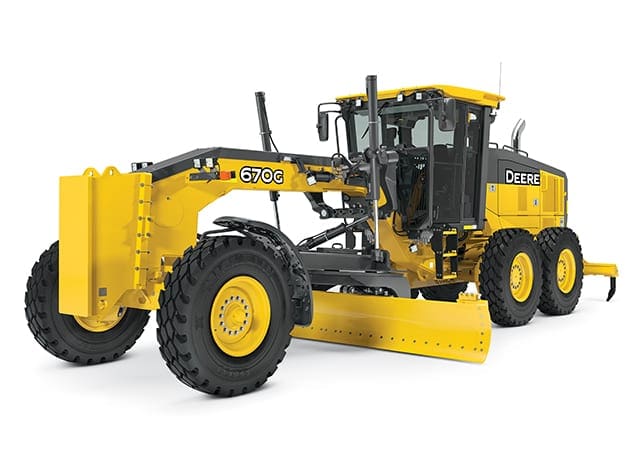

John Deere 670G/GP Motor Grader

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 172 kW
  • Torque: 1,204 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 15,501 kg
  • Ripper Force:
    • Penetration = 9,520 kg
    • Pry-Out = 12,544 kg
  • Operating Weight: 18,529 kg
772g-gp

John Deere 672G/GP Motor Grader (6WD)

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 187 kW
  • Torque: 1,248 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 22,453 kg
  • Ripper Force:
    • Penetration = 9,712 kg
    • Pry-Out = 13,671 kg
  • Operating Weight: 19,300 kg
770g-gp

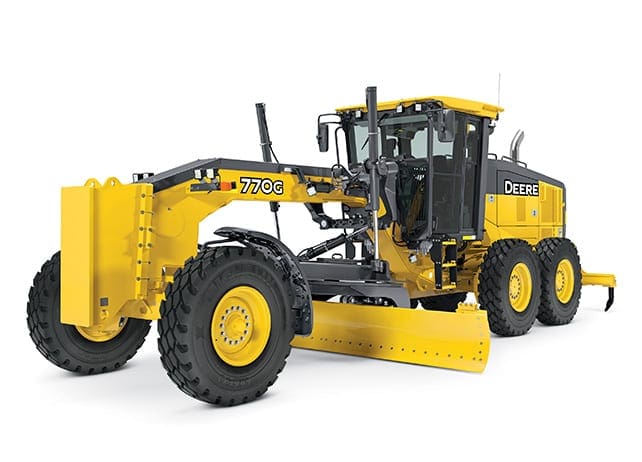

John Deere 770G/GP Motor Grader

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 187 kW
  • Torque: 1,291 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 15,501 kg
  • Ripper Force:
    • Penetration = 9,608 kg
    • Pry-Out = 12,689 kg
  • Operating Weight: 18,781 kg
772g-gp

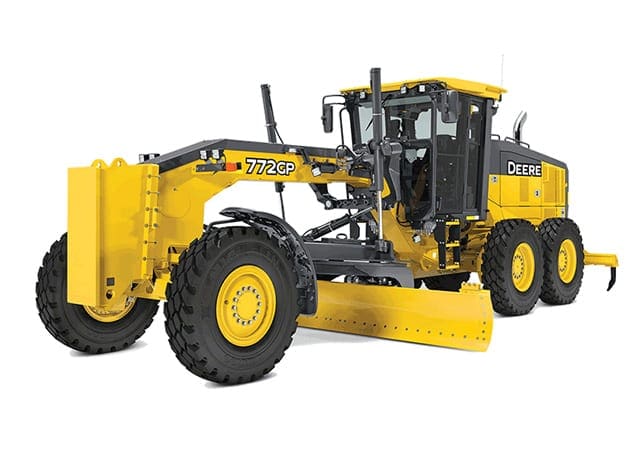

John Deere 772G/GP Motor Grader (6WD)

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 201 kW
  • Torque: 1,300 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.5 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 22,453 kg
  • Ripper Force:
    • Penetration = 9,781 kg
    • Pry-Out = 13,991 kg
  • Operating Weight: 19,604 kg
870g-gp

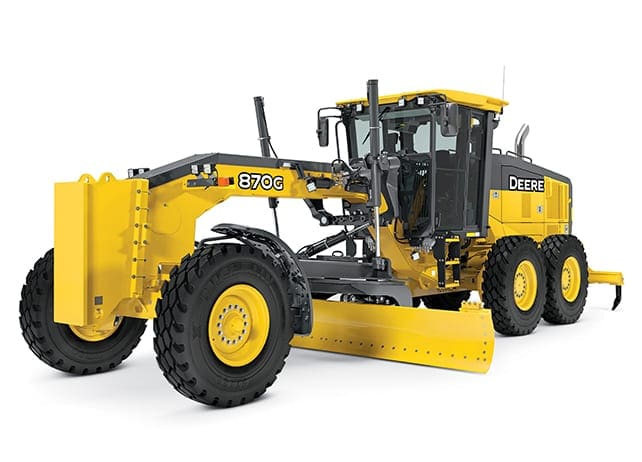

John Deere 870G/GP Motor Grader

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 201 kW
  • Torque: 1,329 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.0 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 15,501 kg
  • Ripper Force:
    • Penetration = 10,087 kg
    • Pry-Out = 13,185 kg
  • Operating Weight: 19,558 kg
872g-gp

John Deere 872G/GP Motor Grader (6WD)

  • Engine: John Deere, 6090, 9.0 litres
  • Emissions Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 209 kW
  • Torque: 1,329 Nm
  • Transmission: 8 forward / 8 reverse
  • Maximum Travel Speed: 45.0 km/h
  • Turning Radius: 7.21 m
  • Blade Pull: 22,453 kg
  • Ripper Force:
    • Penetration = 10,328 kg
    • Pry-Out = 14,404 kg
  • Operating Weight: 20,443 kg
John Deere Motor Graders

John Deere Motor Graders
