John Deere

Often imitated but never duplicated, John Deere dozers continue to set the standard for operator control and productivity.

Backed by 30-plus years of hydrostatic experience, their unique state-of-the-art Total Machine Control (TMC) enables an operator to customize machine operation and response to personal preferences.

450k

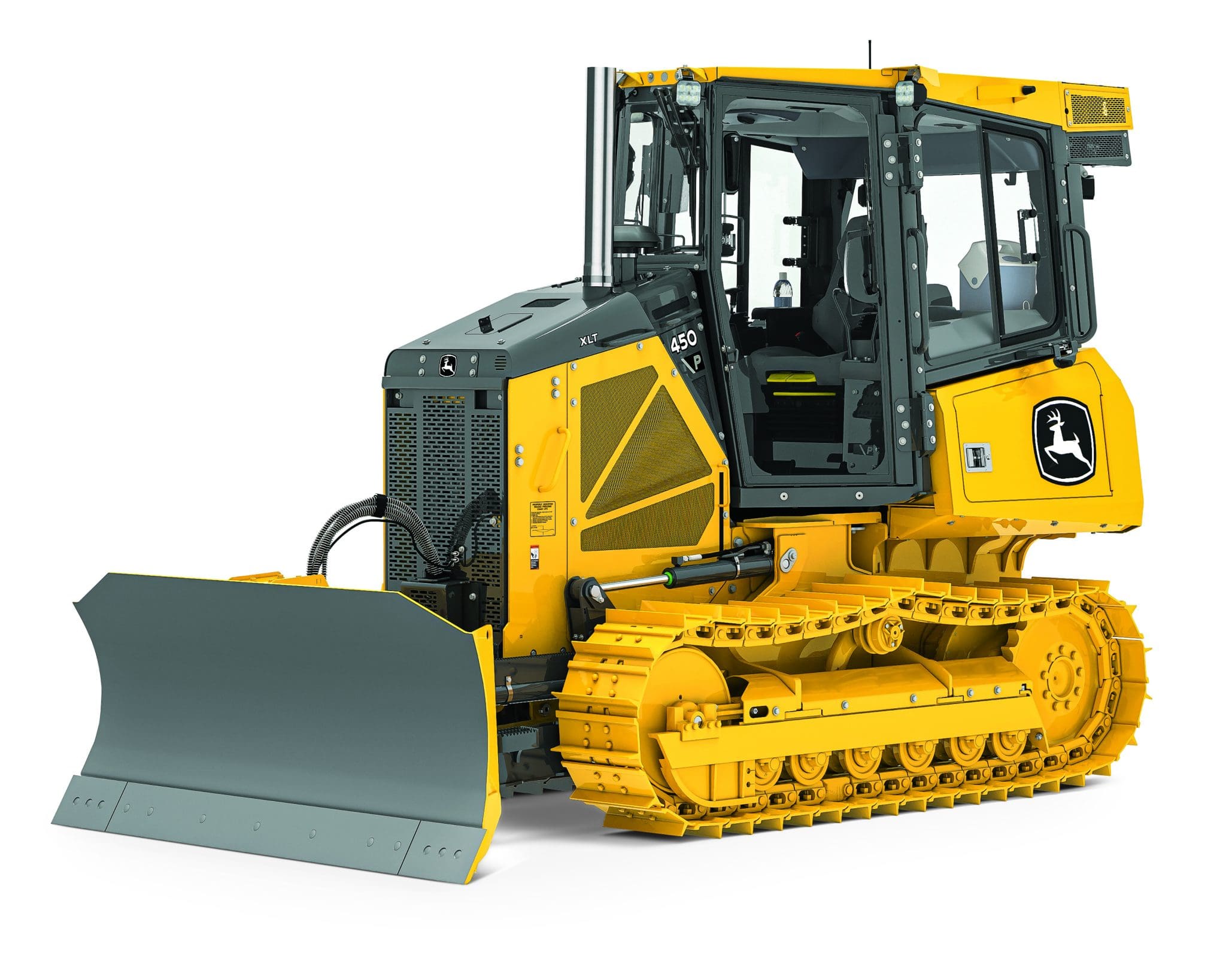

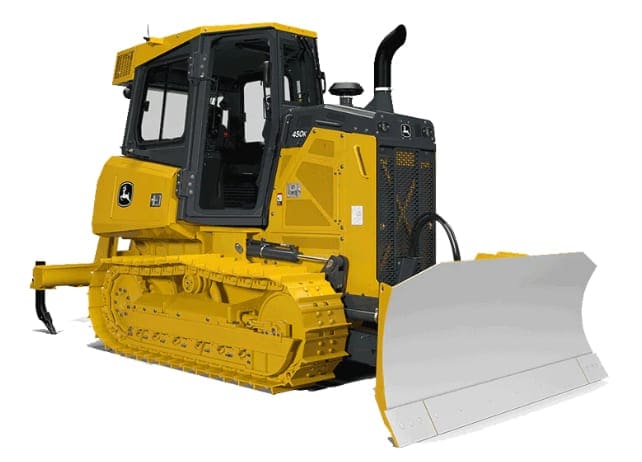

John Deere 450K Crawler Dozer

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 60 kW (2,200 rpm)
  • Torque: 354 Nm (1,400 rpm)
  • Travel Speed:
    • Forward/Reverse = 8.0 km/h
    • Maximum (optional) = 9.7 km/h
  • Drawbar Pull: 122 kN
    • At 1.9 km/h = 80 kN
    • At 3.2 km/h = 48 kN
  • Track Frame Options: STD and LGP
  • Operating Weight: 7,959 – 8,522 kg
550k

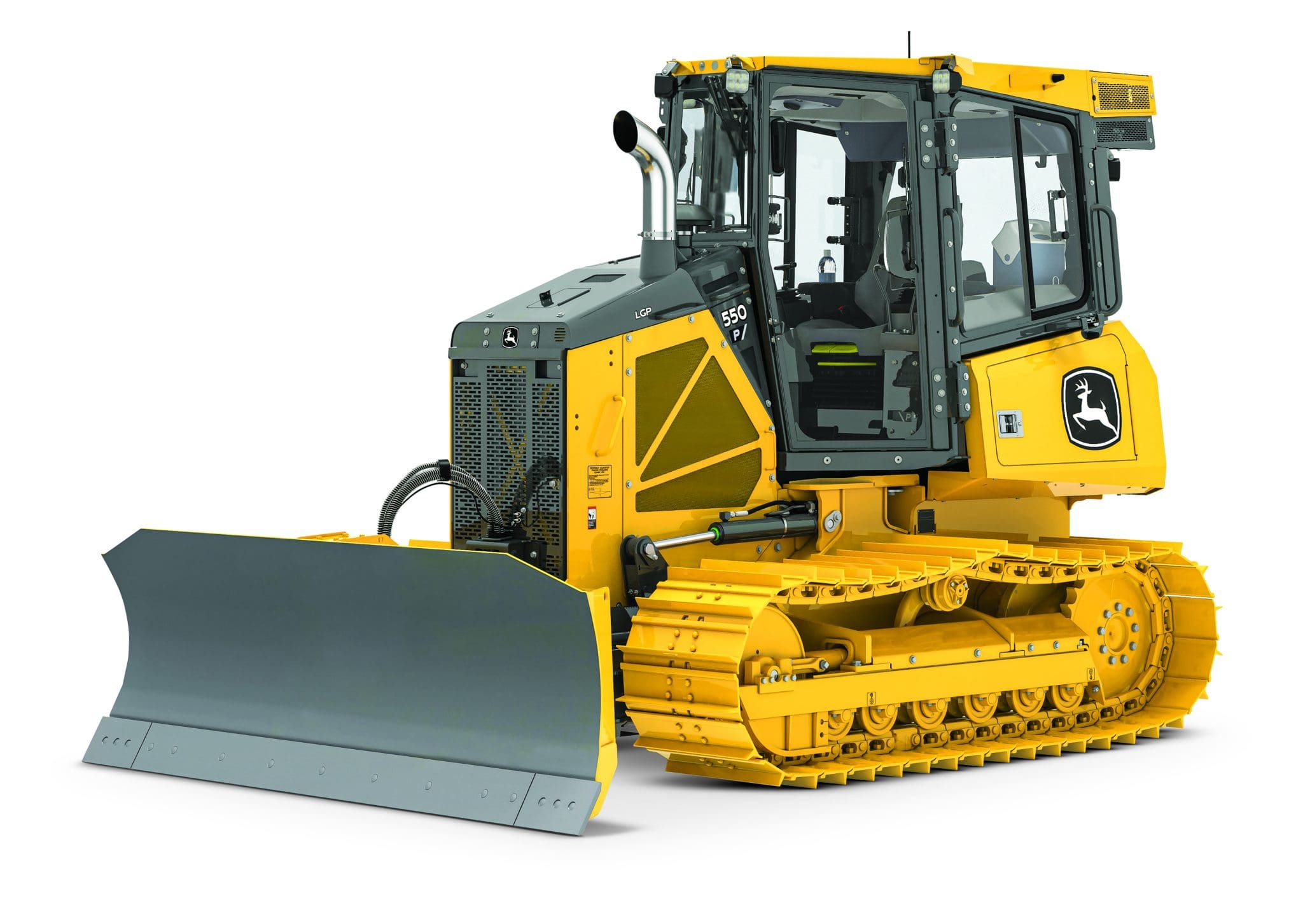

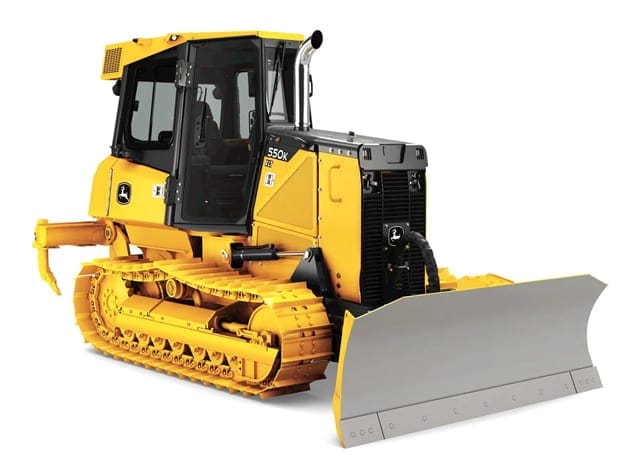

John Deere 550K Crawler Dozer

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 69 kW (2,200 rpm)
  • Torque: 420 Nm (1,400 rpm)
  • Travel Speed:
    • Forward/Reverse = 8.0 km/h
    • Maximum (optional) = 9.7 km/h
  • Drawbar Pull: 134 kN
    • At 1.9 km/h = 94 kN
    • At 3.2 km/h = 58 kN
  • Track Frame Options: STD and LGP
  • Operating Weight: 8,981 – 9,544 kg
650k

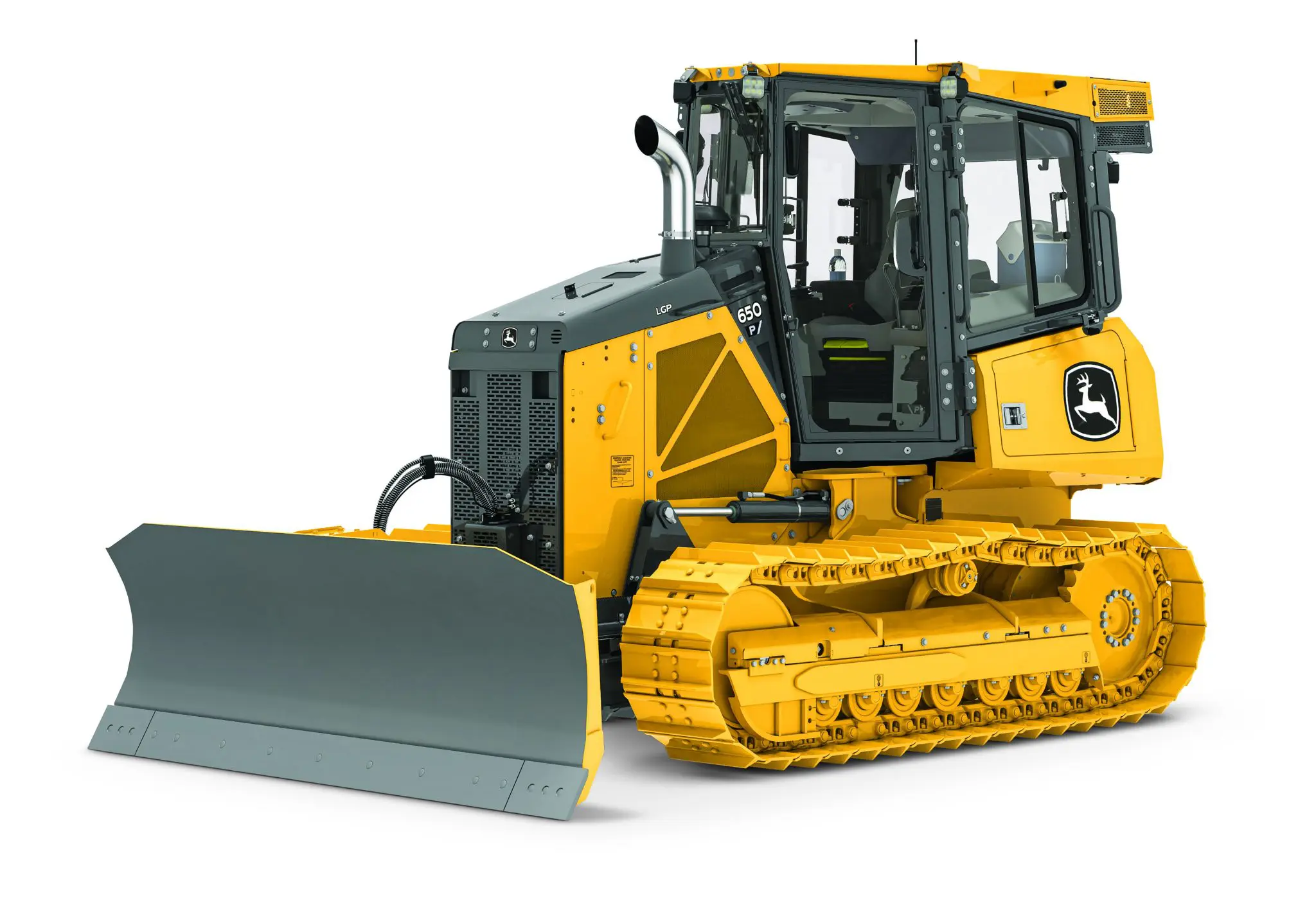

John Deere 650K Crawler Dozer

  • Engine: John Deere, 4045, 4.5 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 78 kW (2,200 rpm)
  • Torque: 475 Nm (1,400 rpm)
  • Travel Speed:
    • Forward/Reverse = 8.0 km/h
    • Maximum (optional) = 9.7 km/h
  • Drawbar Pull: 148 kN
    • At 1.9 km/h = 108 kN
    • At 3.2 km/h = 69 kN
  • Track Frame Options: STD, XLT and LGP
  • Operating Weight: 9,691 – 10,156 kg
700l

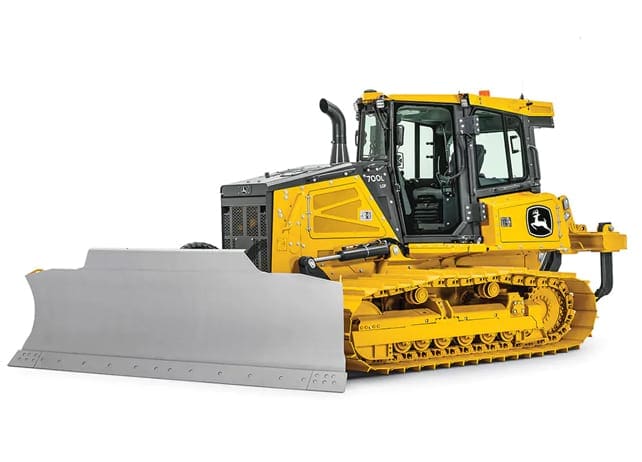

John Deere 700L Crawler Dozer

  • Engine: John Deere, 6068, 6.8 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 101 kW (1,800 rpm)
  • Torque: 559 Nm (1,500 rpm)
  • Travel Speed:
    • Forward/Reverse = 8.9 km/h
    • Maximum (optional) = 9.7 km/h
  • Drawbar Pull: 200 kN
    • At 1.9 km/h = 131 kN
    • At 3.2 km/h = 83 kN
  • Track Frame Options: XLT and LGP
  • Operating Weight: 14,016 – 14,555 kg
750l

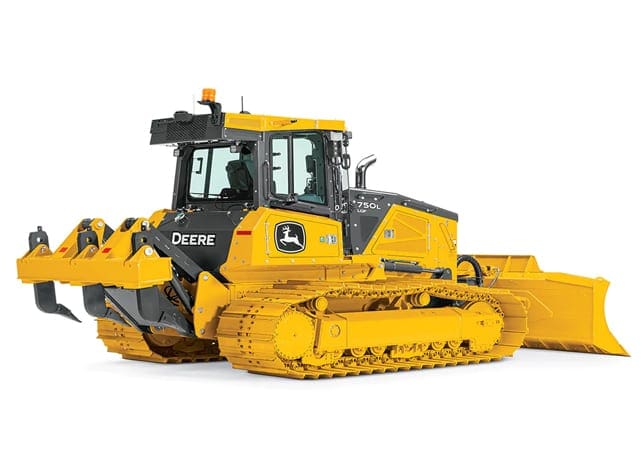

John Deere 750L Crawler Dozer

  • Engine: John Deere, 6068, 6.8 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 131 kW (1,700 rpm)
  • Torque: 768 Nm (1,400 rpm)
  • Travel Speed:
    • Forward/Reverse = 9.7 km/h
    • Maximum (optional) = 11.0 km/h
  • Drawbar Pull: 259 kN
    • At 1.9 km/h = 167 kN
    • At 3.2 km/h = 106 kN
  • Track Frame Options: STD, XLT and LGP
  • Blade Options: PAT and OSD
  • Operating Weight: 17,041 – 18,162 kg
850l

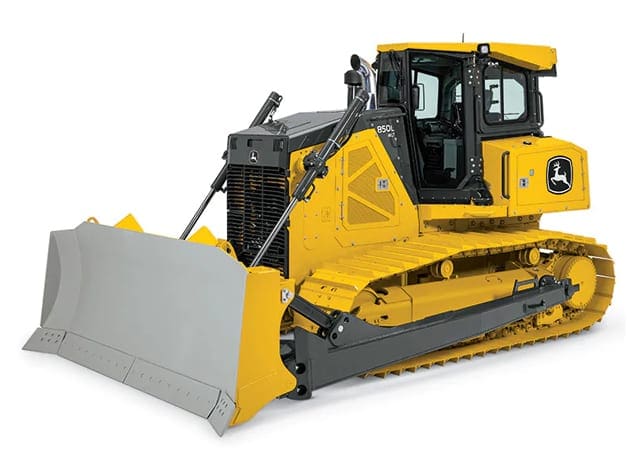

John Deere 850L Crawler Dozer

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 168 kW (1,700 rpm)
  • Torque: 1,126 Nm (1,500 rpm)
  • Travel Speed:
    • Forward/Reverse = 9.7 km/h
    • Maximum (optional) = 11.0 km/h
  • Drawbar Pull: 365 kN
    • At 1.9 km/h = 226 kN
    • At 3.2 km/h = 143 kN
  • Track Frame Options: STD, XLT, WLT and LGP
  • Blade Options: PAT and OSD
  • Operating Weight: 21,126 – 23.295 kg
950k

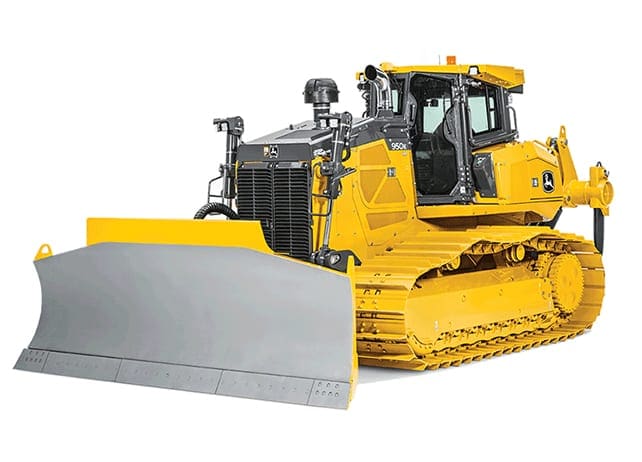

John Deere 950K Crawler Dozer

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 198 kW (1,800 rpm)
  • Torque: 1,245 Nm (1,300 rpm)
  • Travel Speed:
    • Forward/Reverse = 11.0 km/h
  • Drawbar Pull: 547 kN
    • At 1.9 km/h = 262 kN
    • At 3.2 km/h = 154 kN
  • Track Frame Options: STD and LGP
  • Blade Options: PAT and OSD
  • Operating Weight: 29,606 – 31.431 kg
1050k

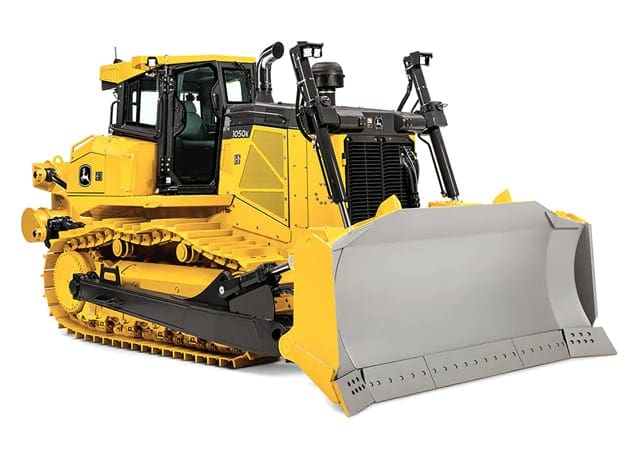

John Deere 1050K Crawler Dozer

  • Engine: John Deere, 6135, 13.5 litres
  • Emission Rating: EPA Final Tier 4/EU Stage IV
  • Engine Power: 261 kW (1,800 rpm)
  • Torque: 1,576 Nm (1,300 rpm)
  • Travel Speed:
    • Forward/Reverse = 11.0 km/h
  • Drawbar Pull: 650 kN
    • At 1.9 km/h = 334 kN
    • At 3.2 km/h = 209 kN
  • Track Frame Options: STD
  • Blade Options: OSD
  • Operating Weight: 42,606 – 43.100 kg
