John Deere

Why run two machines when one will do? Whether you’re loading trucks, busting up blacktop, placing pipe, digging trenches, or moving materials, an L-Series Backhoe is more than up to the task.

Building upon our highly productive K-Series Backhoes, the L-Series features additional backhoe lift capability and pressure-compensated load-sensing (PCLS) hydraulics (on the 310SL HL), for superb multifunction performance.

John Deere 310SL Backhoe

  • Engine: John Deere, 4045TT096, 4.5 litres
  • Emission Rating: EPA Final Tier 2/EU Stage II
  • Engine Power: 72 kW (2,000 rpm)
  • Torque: 392 Nm (1,300 rpm)
  • Transmission: 5 forward / 3 reverse
  • Maximum Travel Speed: 40.0 km/h
  • Pump Flow: at 2,200 rpm
    • Backhoe = 136 L/m
    • Loader = 106 L/m
  • Digging Force
    • Bucket Cylinder = 55.0 kN
    • Heavy-Duty Cylinder (option) = 67.8 kN
    • Crowd Cylinder = 36.6 kN
  • Operating Weight: 7,917 kg

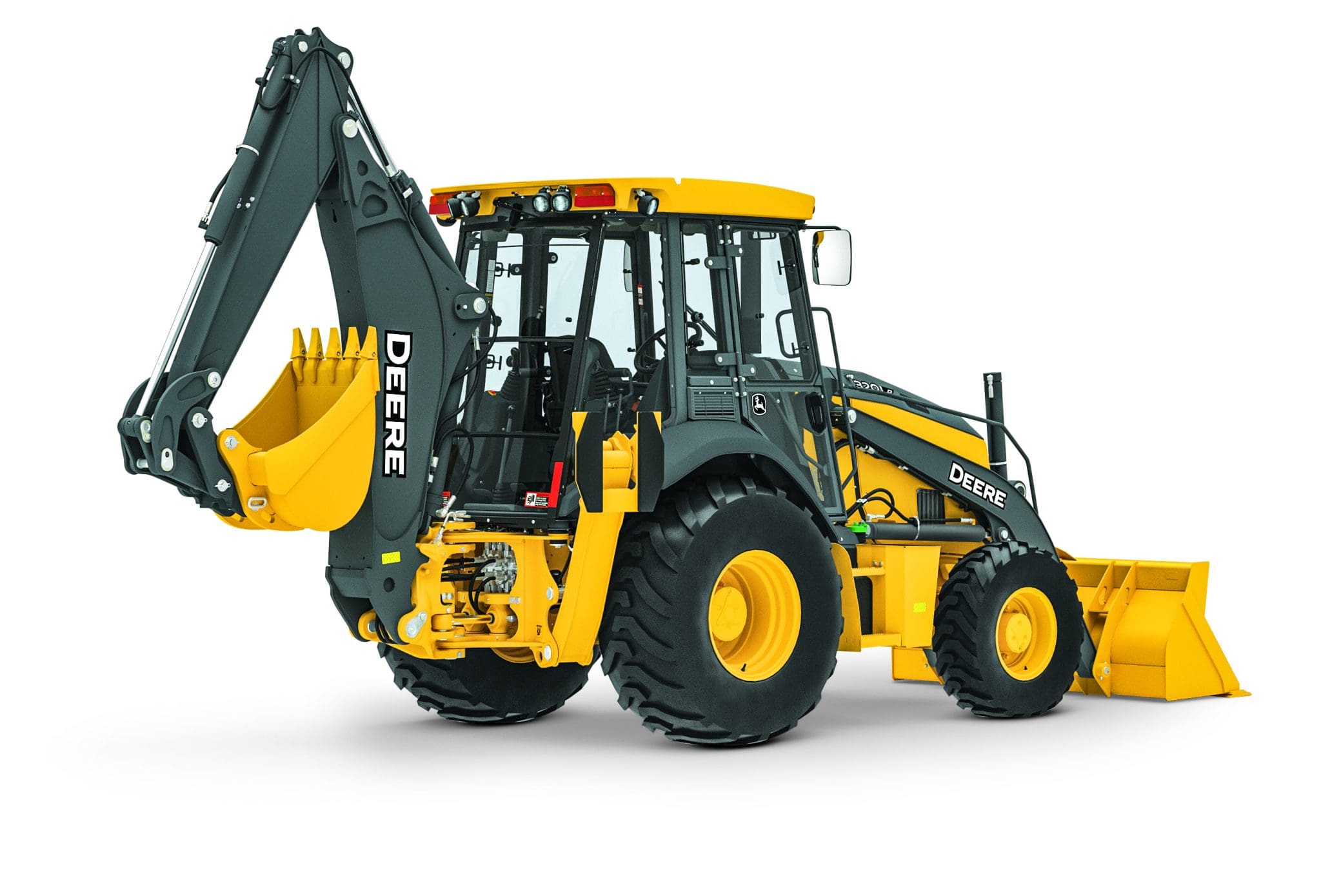

John Deere 315SL Backhoe

  • Engine: John Deere, 4045TT096, 4.5 litres
  • Emission Rating: EPA Final Tier 2/EU Stage II
  • Engine Power: 72 kW (2,000 rpm)
  • Torque: 392 Nm (1,400 rpm)
  • Transmission: 5 forward / 3 reverse
  • Maximum Travel Speed: 40.0 km/h
  • Pump Flow: at 2,200 rpm
    • Backhoe = 136 L/m
    • Loader = 106 L/m
  • Digging Force
    • Bucket Cylinder = 55.0 kN
    • Heavy-Duty Cylinder (option) = 67.9 kN
    • Crowd Cylinder = 36.6 kN
  • Operating Weight: 8,280 kg
