John Deere

Balanced weight distribution and adaptive front suspension of the John Deere Articulated Dump Trucks provide excellent stability in all conditions.

The super quiet interior makes long days in the cab a breeze. Improve productivity, increase uptime and lower operating costs with John Deere WorkSight telematics software.

260e

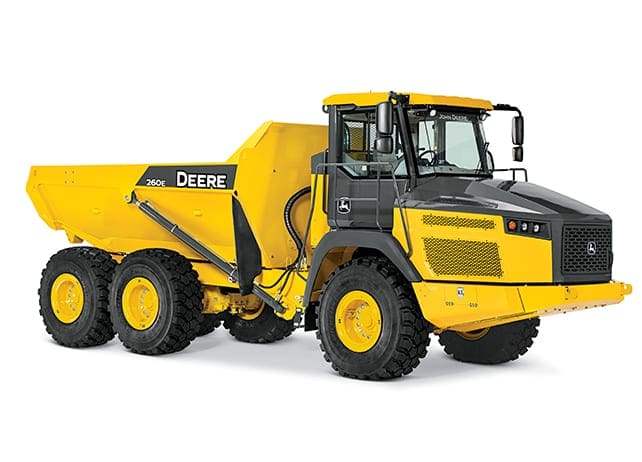

John Deere 260E Articulated Dump Truck

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 239 kW (1,900 rpm)
  • Torque: 1,543 Nm
  • Transmission: 8-speed forward, 4-speed reverse
  • Maximum Travel Speed:
    • Forward = 55 km/h (Gear 8)
    • Reverse = 16 km/h (Gear 4)
  • Heaped Capacity: 15.9 m3
  • Cycle Times:
    • Power down = 7 sec
    • Raise time = 12 sec
  • Rated Payload: 24,192 kg
  • Operating Weight:
    • Empty = 22,494 kg
    • Loaded = 46,686 kg
310e

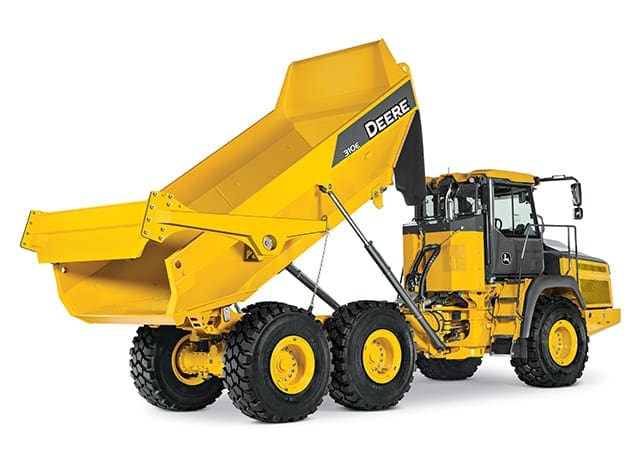

John Deere 310E Articulated Dump Truck

  • Engine: John Deere, 6090, 9.0 litres
  • Emission Rating: EPA Tier 3/EU Stage IIIA
  • Engine Power: 263 kW (1,900 rpm)
  • Torque: 1,543 Nm
  • Transmission: 8-speed forward, 4-speed reverse
  • Maximum Travel Speed:
    • Forward = 55 km/h (Gear 8)
    • Reverse = 16 km/h (Gear 4)
  • Heaped Capacity: 18.3 m3
  • Cycle Times:
    • Power down = 7 sec
    • Raise time = 12 sec
  • Rated Payload: 28,125 kg
  • Operating Weight:
    • Empty = 22,847 kg
    • Loaded = 50,972 kg
370e

John Deere 370E Articulated Dump Truck

  • Engine: John Deere, 6135, 13.5 litres
  • Emission Rating: EPA Interim Tier 4/EU Stage IIIB
  • Engine Power: 315 kW (1,900 rpm)
  • Torque: 2,100 Nm
  • Transmission: 8-speed forward, 4-speed reverse
  • Maximum Travel Speed:
    • Forward = 53 km/h (Gear 8)
    • Reverse = 16 km/h (Gear 4)
  • Heaped Capacity: 21.4 m3
  • Cycle Times:
    • Power down = 7 sec
    • Raise time = 13 sec
  • Rated Payload: 33,630 kg
  • Operating Weight:
    • Empty = 30,782 kg
    • Loaded = 64,412 kg
410e

John Deere 410E Articulated Dump Truck

  • Engine: John Deere, 6135, 13.5 litres
  • Emission Rating: EPA Interim Tier 4/EU Stage IIIB
  • Engine Power: 330 kW (1,900 rpm)
  • Torque: 2,284 Nm
  • Transmission: 8-speed forward, 4-speed reverse
  • Maximum Travel Speed:
    • Forward = 55 km/h (Gear 8)
    • Reverse = 17 km/h (Gear 4)
  • Heaped Capacity: 23.7 m3
  • Cycle Times:
    • Power down = 7 sec
    • Raise time = 13 sec
  • Rated Payload: 37,266 kg
  • Operating Weight:
    • Empty = 31,853 kg
    • Loaded = 69,119 kg
460e

John Deere 460E Articulated Dump Truck

  • Engine: John Deere, 6135, 13.5 litres
  • Emission Rating: EPA Interim Tier 4/EU Stage IIIB
  • Engine Power: 359 kW (1,900 rpm)
  • Torque: 2,401 Nm
  • Transmission: 8-speed forward, 4-speed reverse
  • Maximum Travel Speed:
    • Forward = 55 km/h (Gear 8)
    • Reverse = 17 km/h (Gear 4)
  • Heaped Capacity: 26.9 m3
  • Cycle Times:
    • Power down = 7 sec
    • Raise time = 13 sec
  • Rated Payload: 41,820 kg
  • Operating Weight:
    • Empty = 32,216 kg
    • Loaded = 74,036 kg
