Hustler

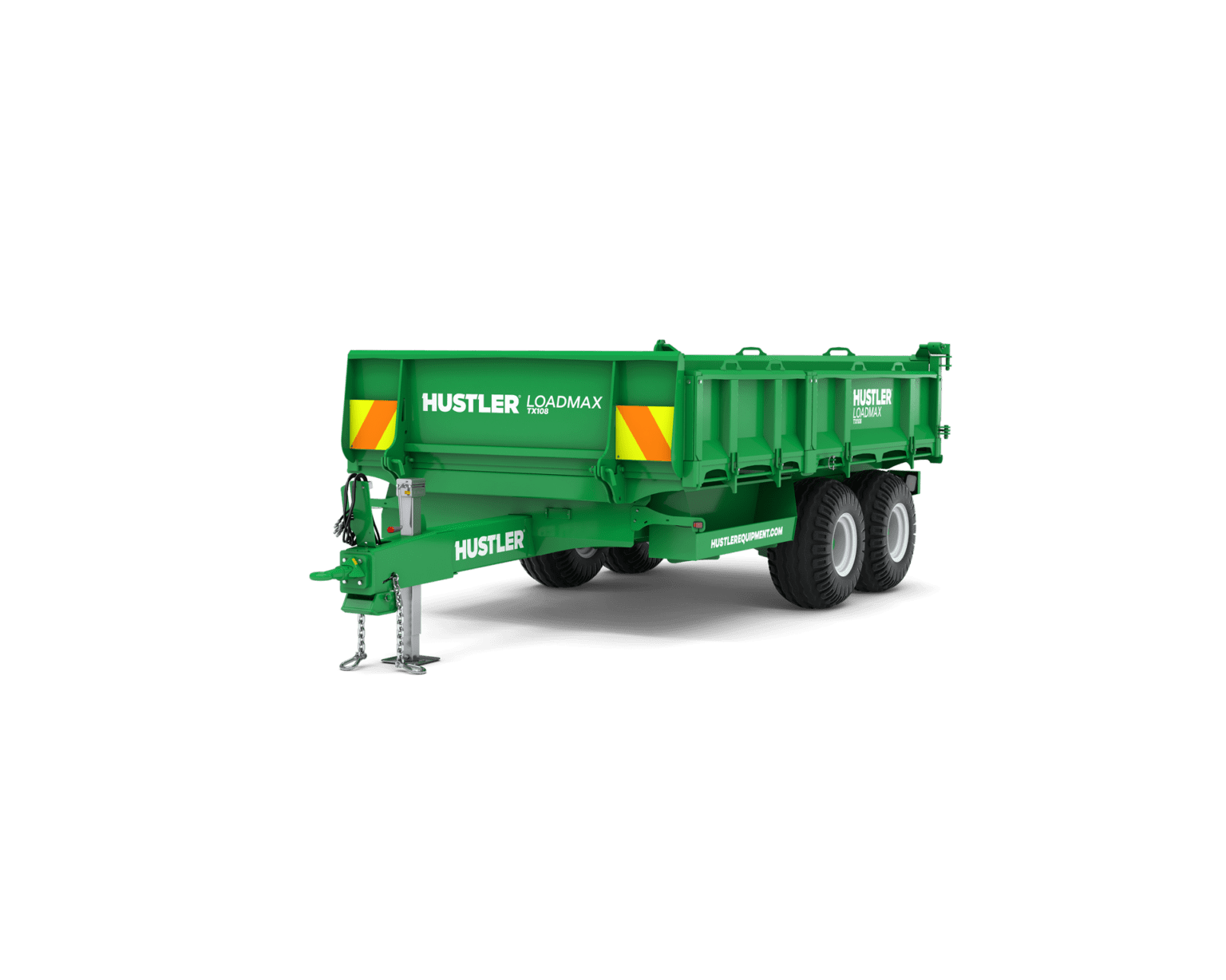

LoadMax Tip Trailer
Tough tip trailer range, loaded with unique operator convenience features, a longer-lasting steel deck, folding headboard, reinforced 2-piece sides that handle a beating from rocks, and a twist-resistant structure to prevent roll-over when tipping.
TX108
- Deck size: 4000 x 2400 mm
- Side height: 500 mm
- Capacity (load-level): 4.8m3
- Lift capacity: 8 Tonne
- Wheels: 400/60R15.5
- Axle size (tandem): 70×6 Stud walker
- Eye type: 2” Swivel
- Sides: Two piece
- Tailgate: Dual swing
- Tailgate trip: Hydraulic
- Tipping angle: 58º
TX110
- Deck size: 4500 x 2400 mm
- Side height: 500 mm
- Capacity (load-level): 5.4m3
- Lift capacity: 10 Tonne
- Wheels: 400/60R15.5
- Axle size (tandem): 70×6 Stud walker
- Eye type: 2” Swivel
- Sides: Two piece
- Tailgate: Dual swing
- Tailgate trip: Hydraulic
- Tipping angle: 58º
TX114²
- Deck size: 4800 x 2660 mm
- Side height: 650 mm
- Capacity (load-level): 8.3m3
- Lift capacity: 14 Tonne
- Wheels: 500/50R22.5
- Axle size (tandem): 80×8 Stud walker
- Eye type: 2” Swivel
- Sides: Two piece
- Tailgate: Dual swing
- Tailgate trip: Hydraulic
- Tipping angle: 60º
- Hydraulics required: 1 x double acting, 20-40 l/min, 2610 psi maximum
- Tare weight: 4180kg
